Exploded View

WARNING: This page is about a different car, the 2010 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

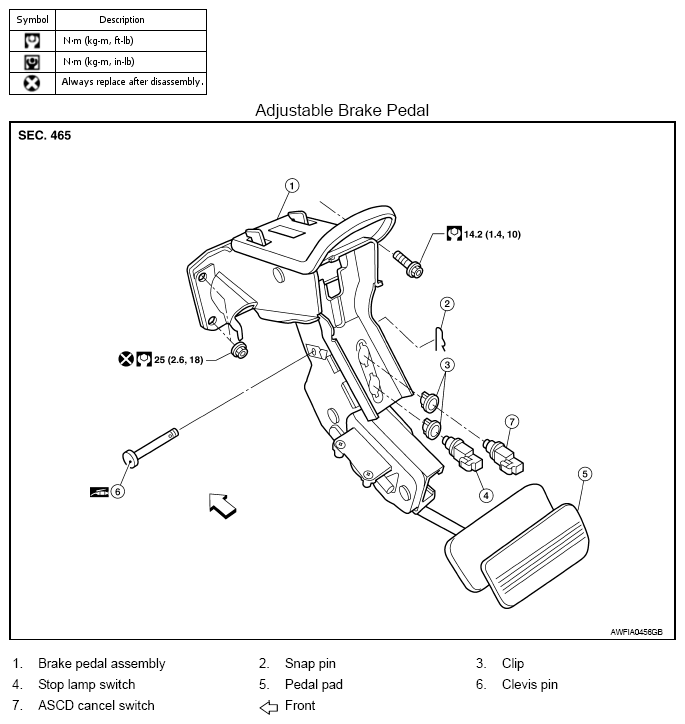

Fig 1: Exploded View Of Adjustable Brake Pedal With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: The clevis pin may be installed from either direction.

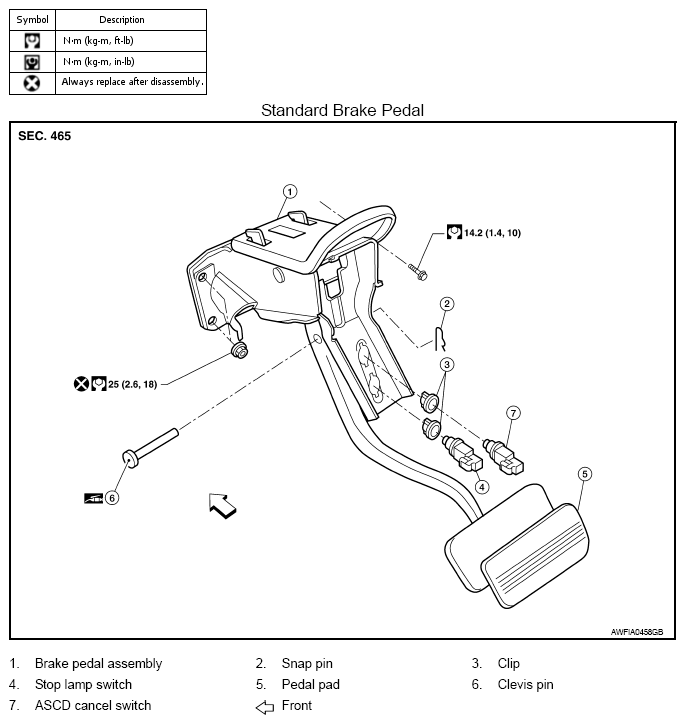

Fig 2: Exploded View Of Standard Brake Pedal With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: The clevis pin may be installed from either direction.
