CAN COMMUNICATION SYSTEM : CAN System Specification Chart
WARNING: This page is about a different car, the 2011 Nissan Juke. However, it is still accessible from the selected car via links, so may be relevant.
Determine CAN system type from the following specification chart.
NOTE:
Refer to
"TROUBLE DIAGNOSIS PROCEDURE " for how to use CAN system specification chart.
CAN SYSTEM SPECIFICATION CHART
| Body type | Hatch back | |||||
|---|---|---|---|---|---|---|
| Axle | 2WD | AWD | ||||
| Engine | MR16DDT | |||||
| Transmission | M/T | CVT | ||||
| Brake control | VDC | |||||
| Integrated Control system | x | x | x | |||
| CAN system type | 1 | 2 | 3 | 4 | 5 | 6 |
| CAN communication unit | ||||||
| ECM | x | x | x | x | x | x |
| AWD control module | x | x | ||||
| ABS actuator and electric unit (control unit) | x | x | x | x | x | x |
| IPDM E/R | x | x | x | x | x | x |
| TCM | x | x | x | x | ||
| Data link connector | x | x | x | x | x | x |
| EPS control unit | x | x | x | x | x | x |
| Combination meter | x | x | x | x | x | x |
| Steering angle sensor | x | x | x | x | x | x |
| Air bag diagnosis sensor unit | x | x | x | x | x | x |
| A/C auto amp. | x | x | x | |||
| Multi display unit | x | x | x | |||
| BCM | x | x | x | x | x | x |
| x: Applicable | ||||||

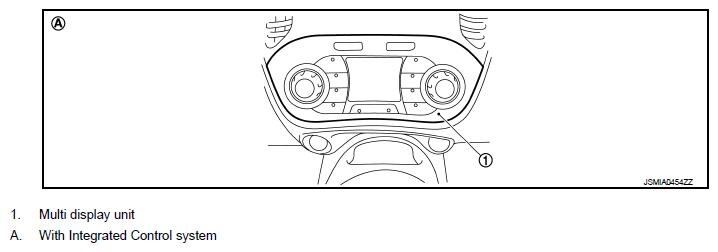

VEHICLE EQUIPMENT IDENTIFICATION INFORMATION
NOTE:
Check CAN system type from the vehicle shape and equipment.
