System Diagram: Notes

WARNING: This page is about a different car, the 2011 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

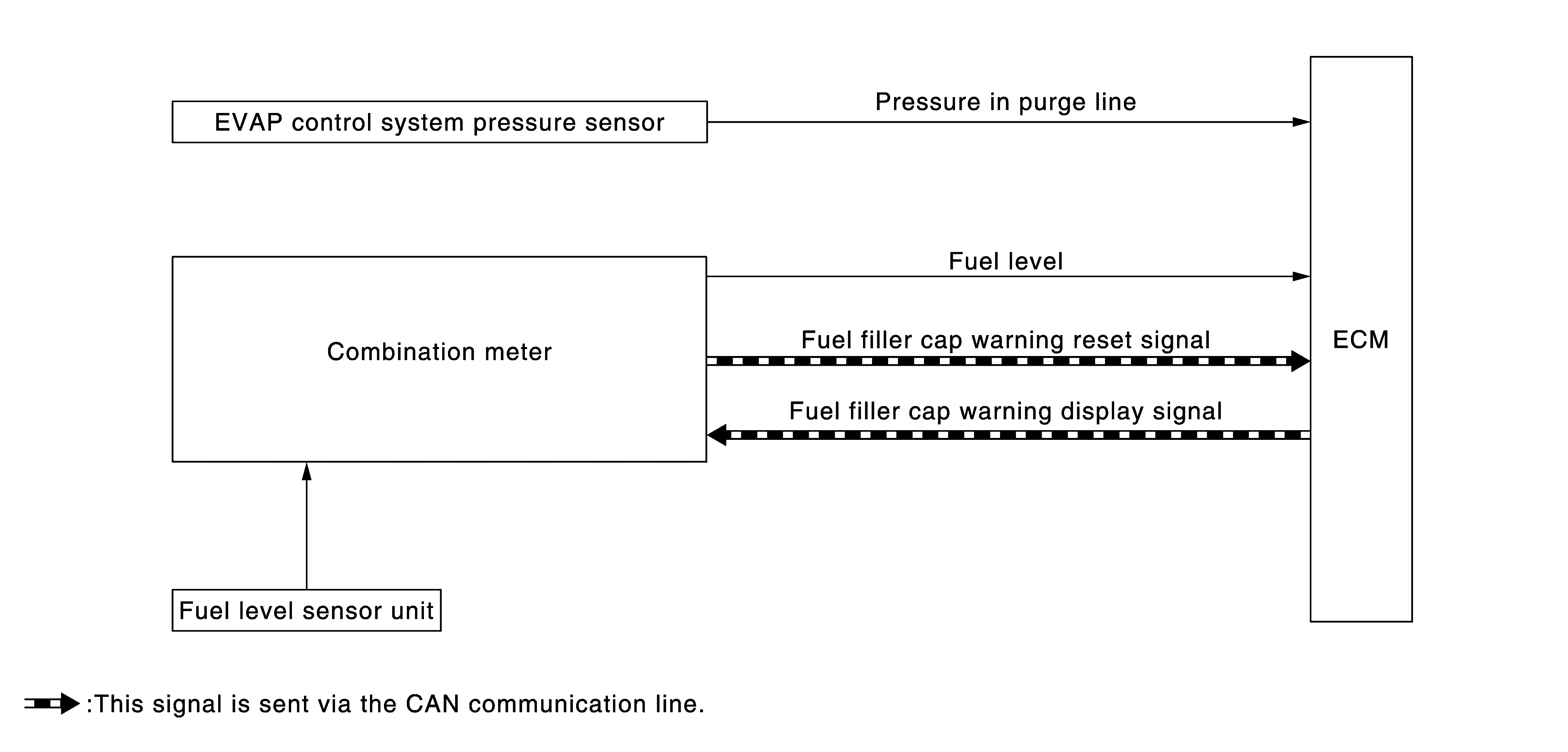

Fig 1: Fuel Filler Cap Warning System Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.
