Overall Sequence

WARNING: This page is about a different car, the 2010 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

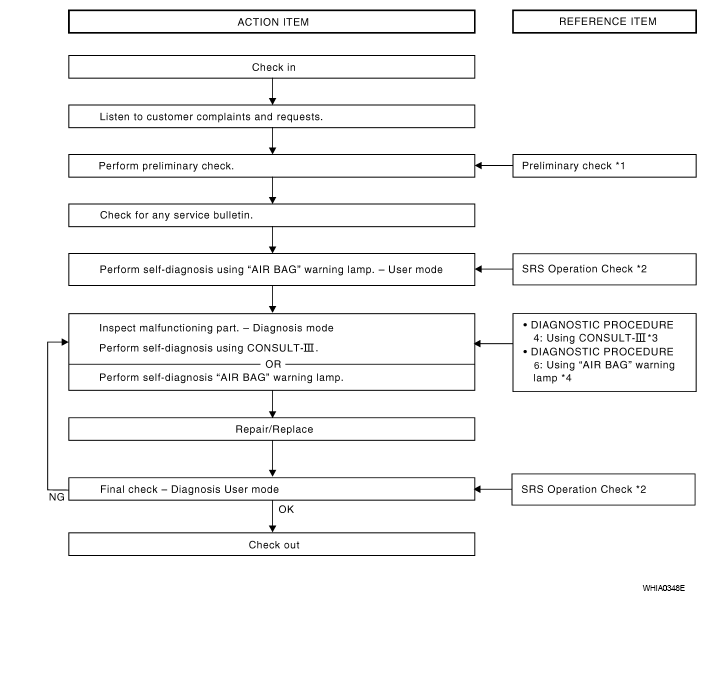

Fig 1: Diagnosis And Repair Work Flow Chart
G06581290Courtesy of NISSAN MOTOR CO., U.S.A.

*1 -  Trouble Diagnosis Introduction

*2 -  SRS Operation Check

*3 -  Trouble Diagnosis with CONSULT-III

*4 -  Self-Diagnosis Function (Without CONSULT-III)
