Operation Table Of BCM And Combination Switches

BCM reads operation status of combination switch using combinations shown in table below.

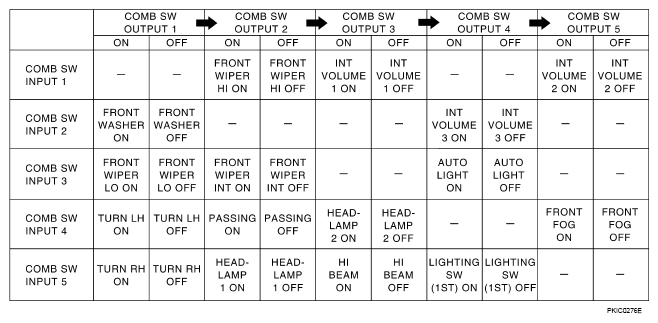

Fig 1: Operation Table Of BCM And Combination Switches

Courtesy of NISSAN MOTOR CO., U.S.A.
