Engine Control System - DTCS P0130 To P0430
›
DTC P0340, P0345: CMP Sensor
›
Wiring Diagram
DTC P0340, P0345: CMP Sensor: Wiring Diagram

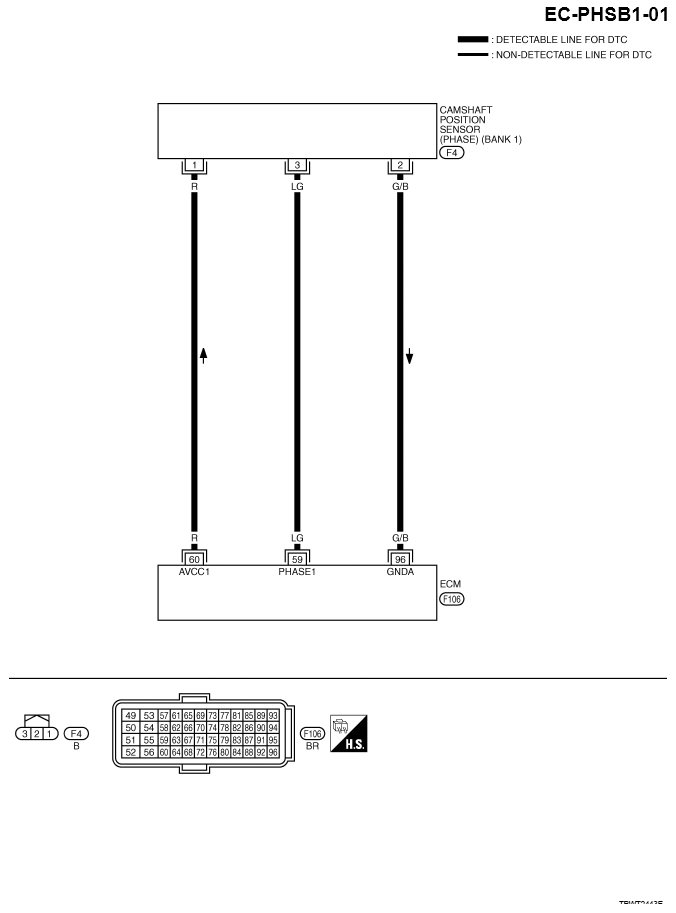

Fig 1: EC-PHSB1-01 - Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.

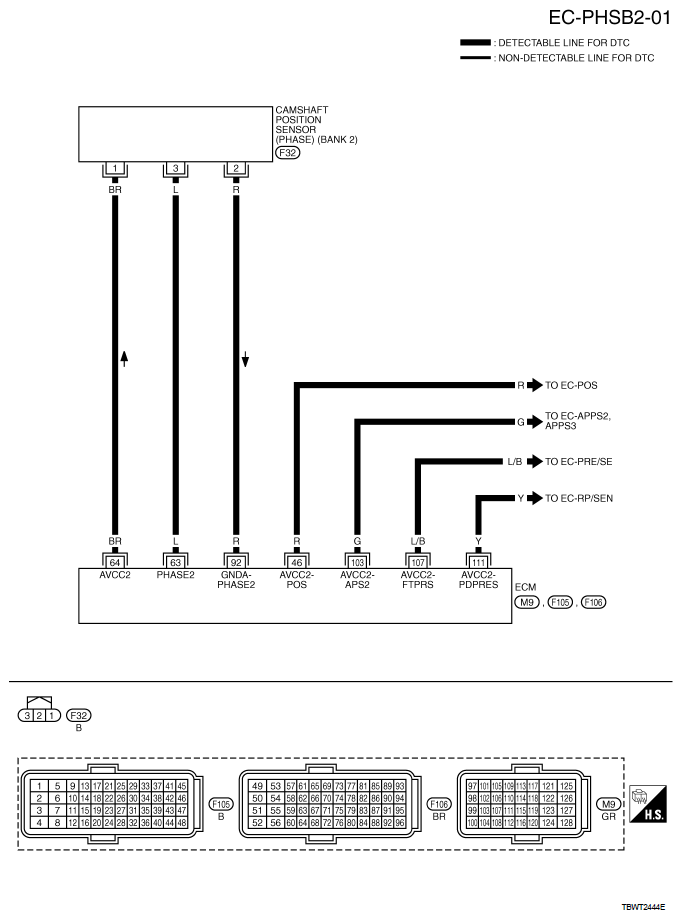

Fig 2: EC-PHSB2-01 - Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
