DTC P0550: PSP Sensor: Wiring Diagram

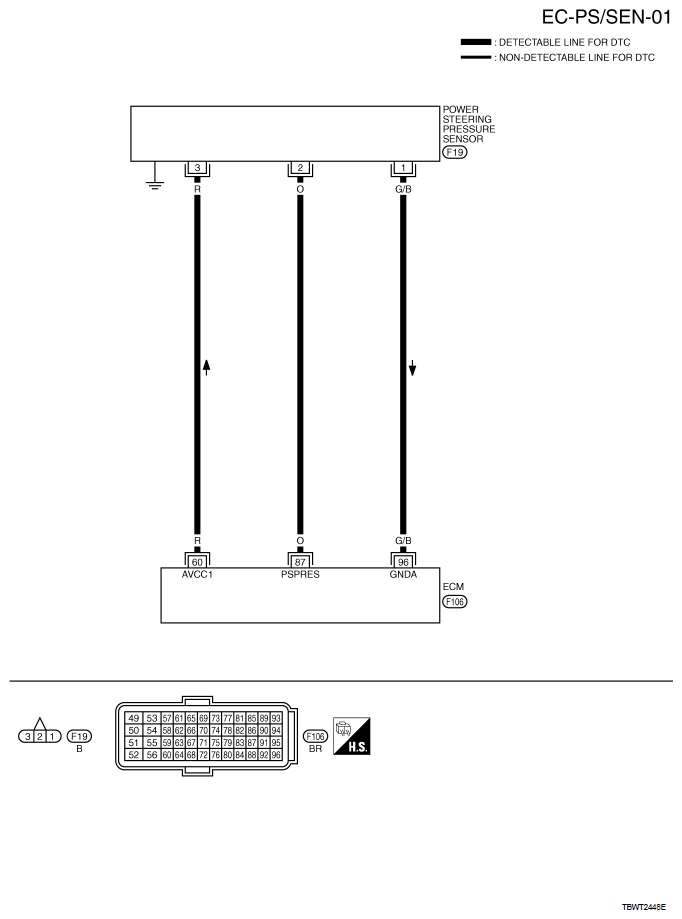

Fig 1: EC-PS/SEN-01 - Wiring Diagram
G06306692Courtesy of NISSAN MOTOR CO., U.S.A.
