DTC P1239, P2135: TP Sensor
›
Wiring Diagram
DTC P1239, P2135: TP Sensor: Wiring Diagram

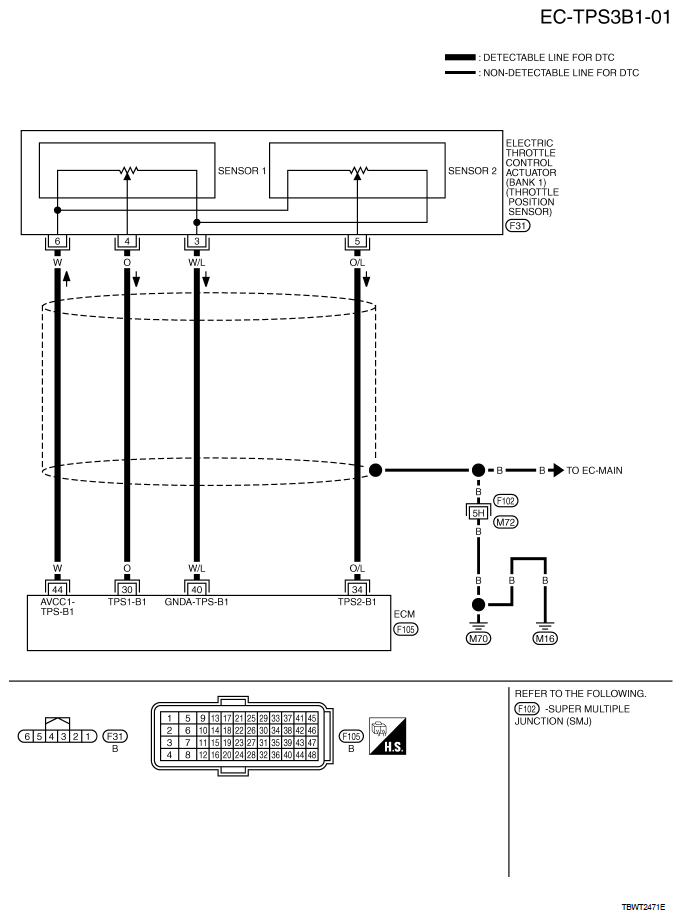

Fig 1: EC-TPS3B1-01 - Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.

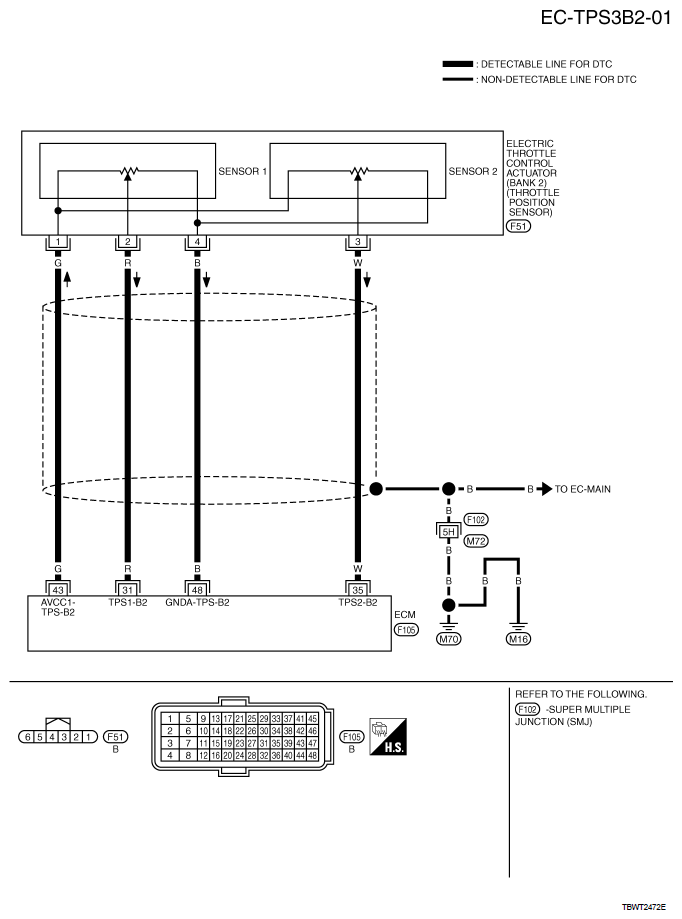

Fig 2: EC-TPS3B2-01 - Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
