DTC P1553: Battery Current Sensor: Wiring Diagram

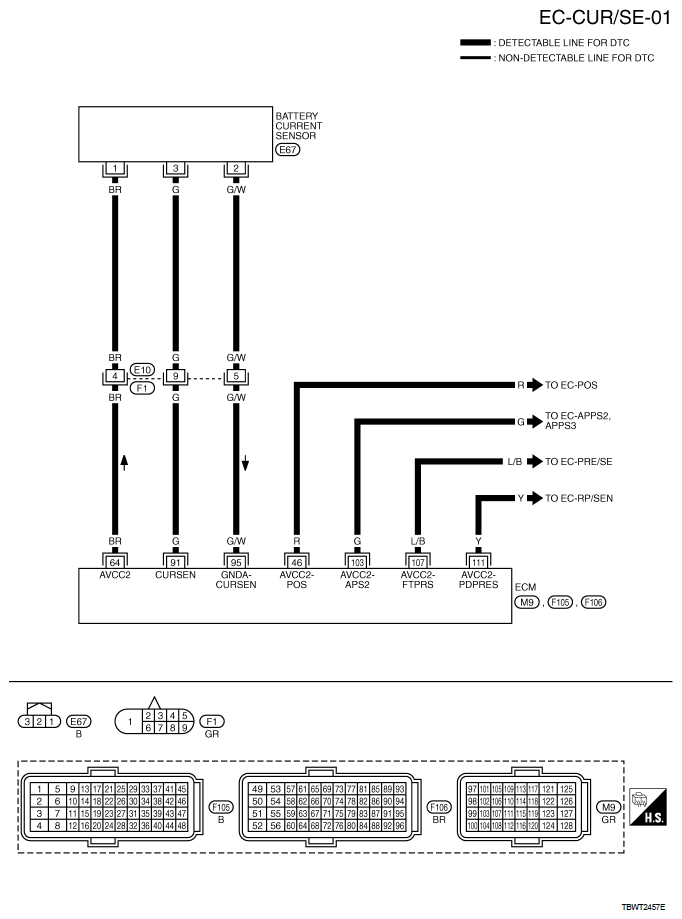

Fig 1: EC-CUR/SE-01 - Wiring Diagram
G06306739Courtesy of NISSAN MOTOR CO., U.S.A.
