DTC P2138: App Sensor: Wiring Diagram

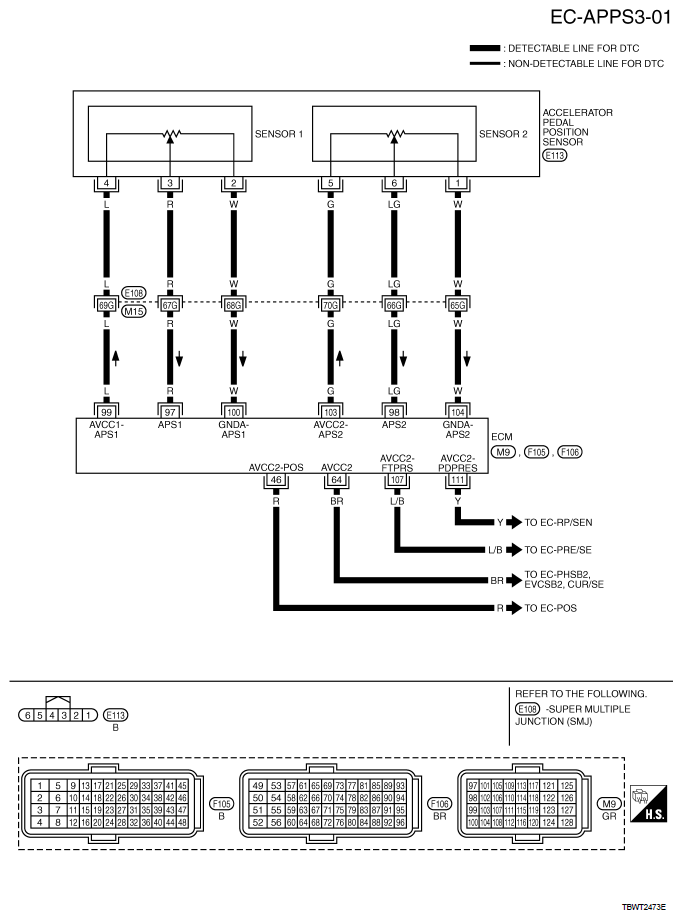

Fig 1: EC-APPS3-01 - Wiring Diagram
G06306777Courtesy of NISSAN MOTOR CO., U.S.A.
