DTC P0112, P0113: IAT Sensor: Wiring Diagram

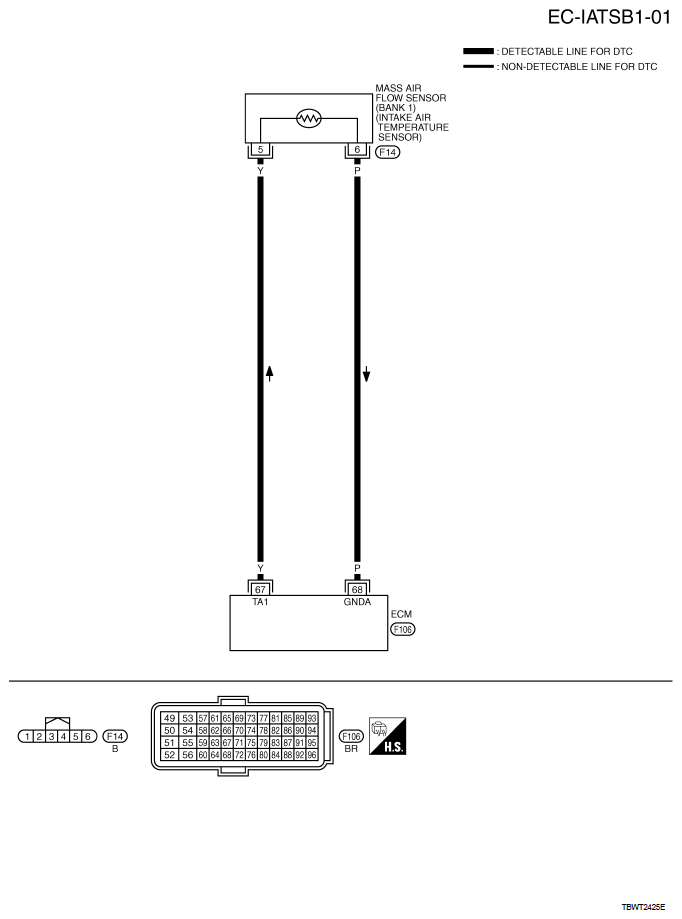

Fig 1: EC-IATSB1-01 - Wiring Diagram
G06306495Courtesy of NISSAN MOTOR CO., U.S.A.
