DTC P0117, P0118: ECT Sensor: Wiring Diagram

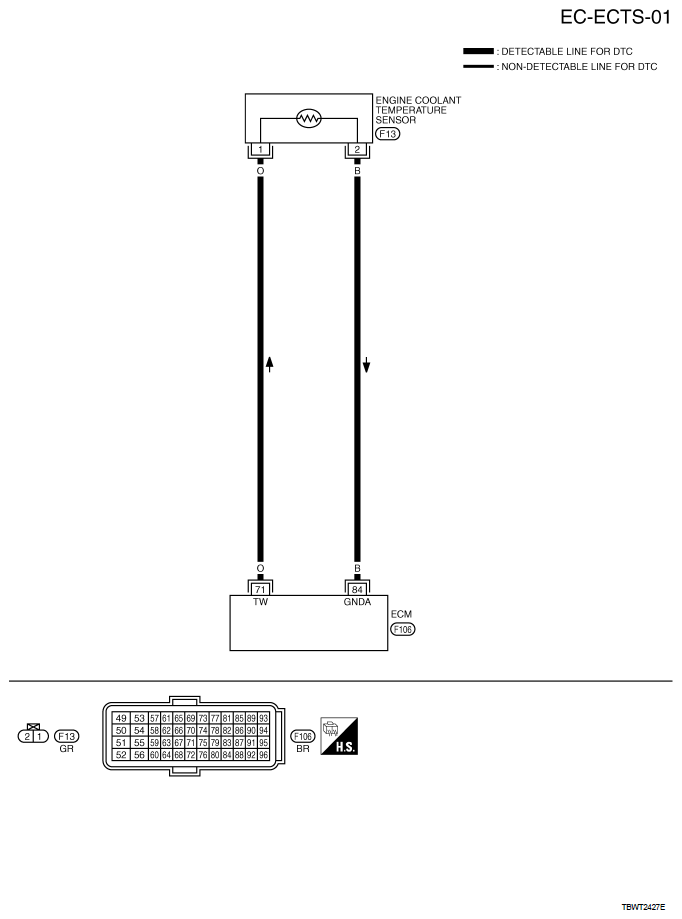

Fig 1: EC-ECTS-01 - Wiring Diagram
G06306503Courtesy of NISSAN MOTOR CO., U.S.A.
