IGNITION TIMING : Special Repair Requirement

CHECK IGNITION TIMING
1. Attach timing light to loop wire as shown in illustration.

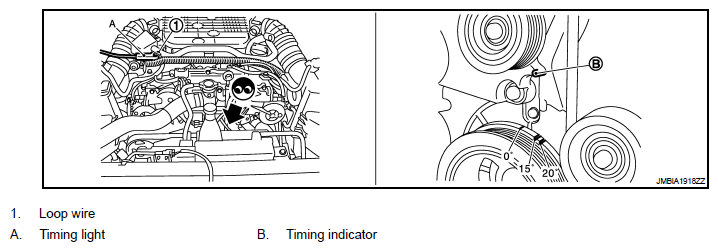

  Fig 1: Identifying Timing Marks
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. Check ignition timing.
  INSPECTION END
