Refrigerant Pressure Sensor: Wiring Diagram

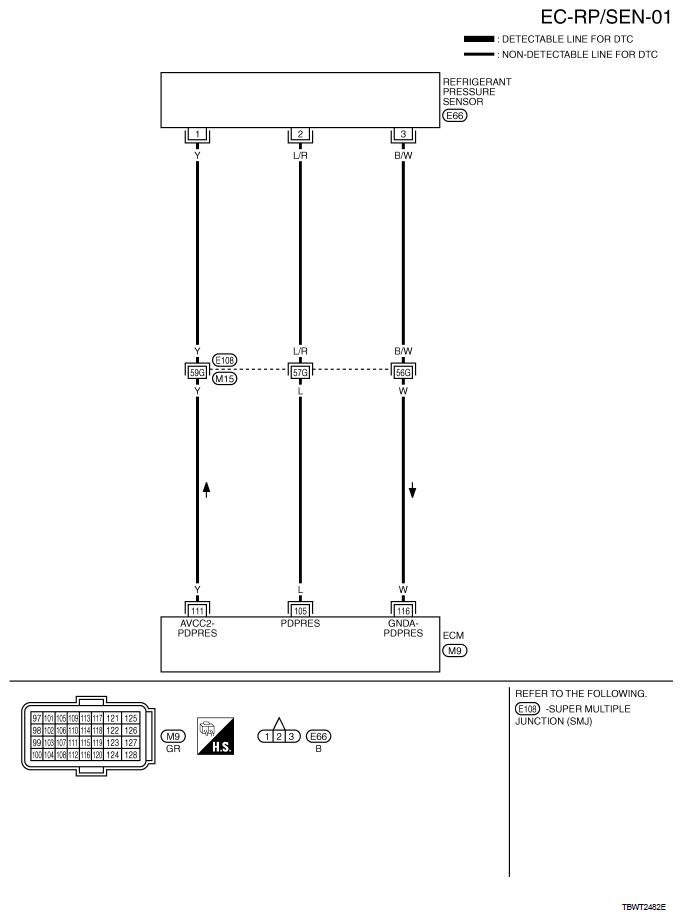

Fig 1: EC-RP/SEN-01 - Wiring Diagram
G06306843Courtesy of NISSAN MOTOR CO., U.S.A.
