Inspection Procedure

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

When the transponder key ECU is replaced, reregister the ECU - ECM communication ID (see REGISTRATION ).

PERFORM ACTIVE TEST BY TECHSTREAM (SECURITY INDICATOR LIGHT)

Select the Active Test, use the Techstream to generate a command.

Check that the security indicator light operation is normal.

TESTER DISPLAY - IMMOBILIZER

Tester Display	Test Part	Control Range	Diagnostic Note
Security Indicator	Security indicator light	ON or OFF	-

OK: Security indicator light turns ON and OFF.

NG: Go to step 3

OK: Go to Next Step

CHECK TRANSPONDER KEY ECU

Remove the transponder key ECU with the connector still connected (see REMOVAL ).

Measure the voltage according to the value(s) in the table below.

Standard voltage

TRANSPONDER KEY ECU TESTER CONNECTION SPECIFIED CONDITION CHART

Tester Connection	Condition	Specified Condition
J26-8 (IND) - Body ground	Engine immobilizer system is set	Alternating between 11 to 14 V and below 1 V

Fig 1: Identifying Transponder Key ECU Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE TRANSPONDER KEY ECU (see REMOVAL )

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

CHECK HARNESS AND CONNECTOR (TRANSPONDER KEY ECU - SECURITY INDICATOR LIGHT)

Disconnect the J26 ECU connector.
Disconnect the K20 meter connector.

Measure the resistance according to the value(s) in the table below.

Standard resistance

HARNESS AND CONNECTOR (TRANSPONDER KEY ECU - SECURITY INDICATOR LIGHT) TESTER CONNECTION SPECIFIED CONDITION CHART

Tester Connection	Condition	Specified Condition
J26-8(IND) - K20-17 (LP)	Always	Below 1 Ω
J26-17(LP)- Body ground	Always	10 kΩ higher

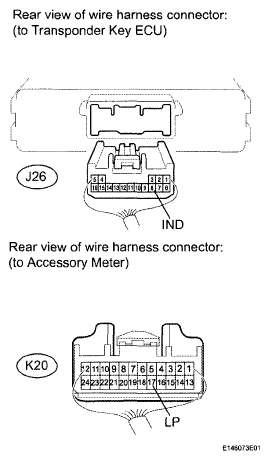

Fig 2: Checking Harness And Connector (Transponder Key ECU - Security Indicator Light)

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: REPLACE ACCESSORY METER (SECURITY INDICATOR LIGHT) (See REMOVAL )
