Rear Window Defogger
›
Schematic
Rear Window Defogger: Schematic

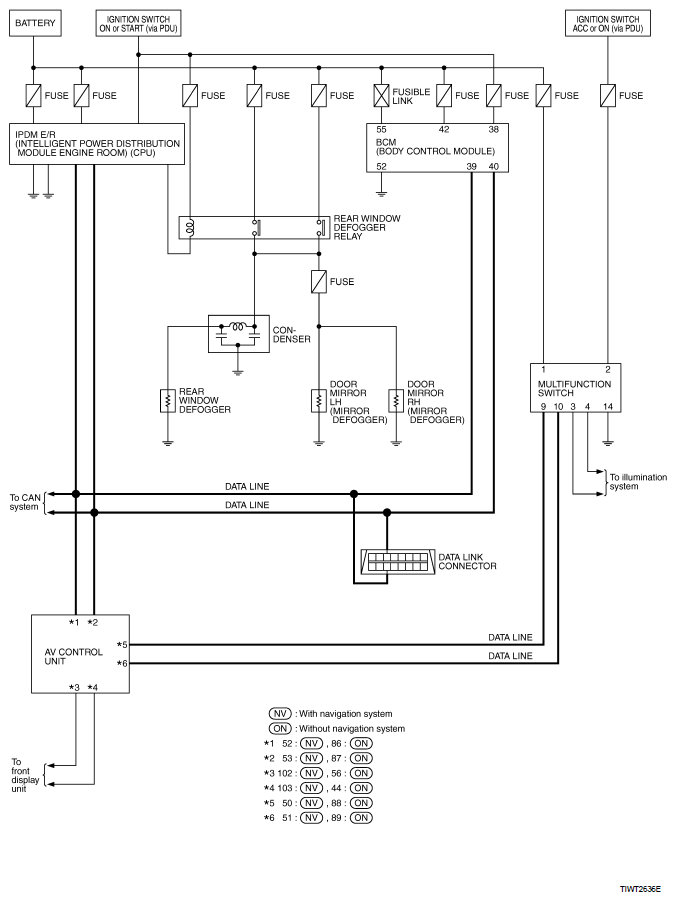

Fig 1: Rear Window Defogger Schematic
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
