Fuse Circuits

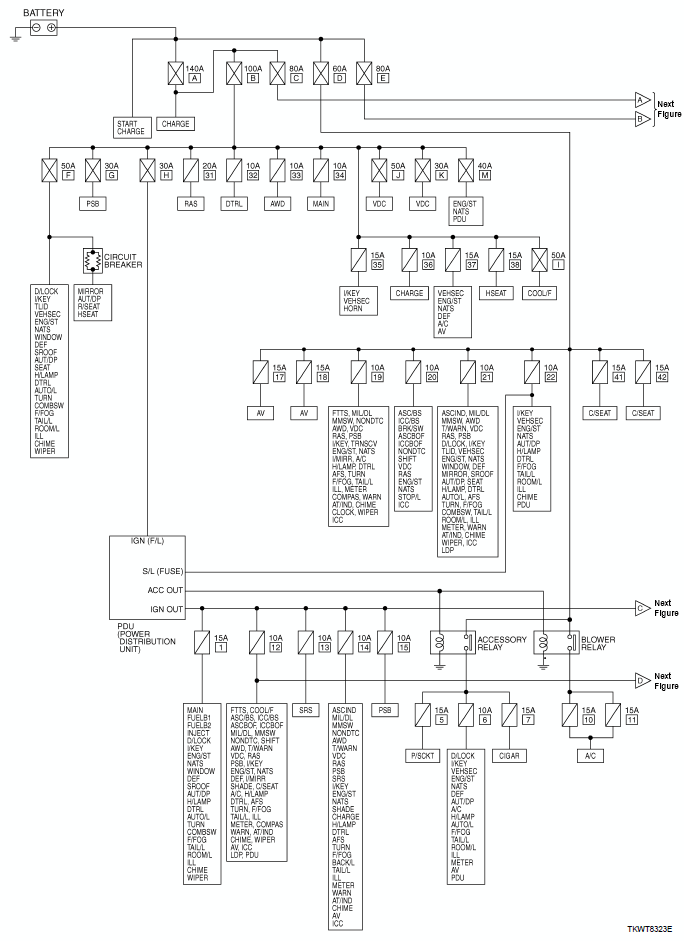

Fig 1: Power Supply Routing Circuit Schematic (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

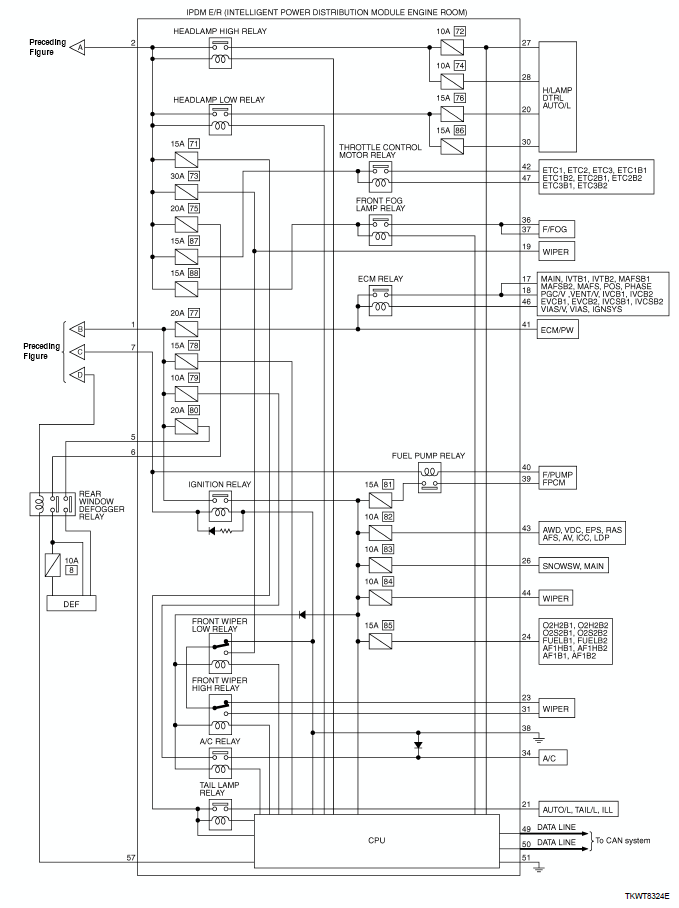

Fig 2: Power Supply Routing Circuit Schematic (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

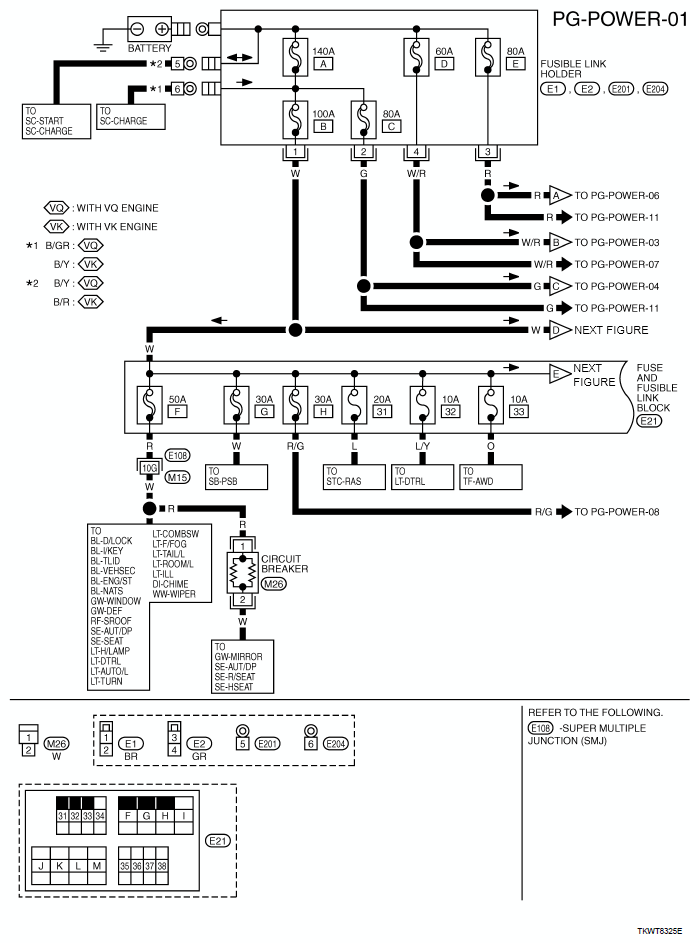

Fig 3: PG-POWER-01 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

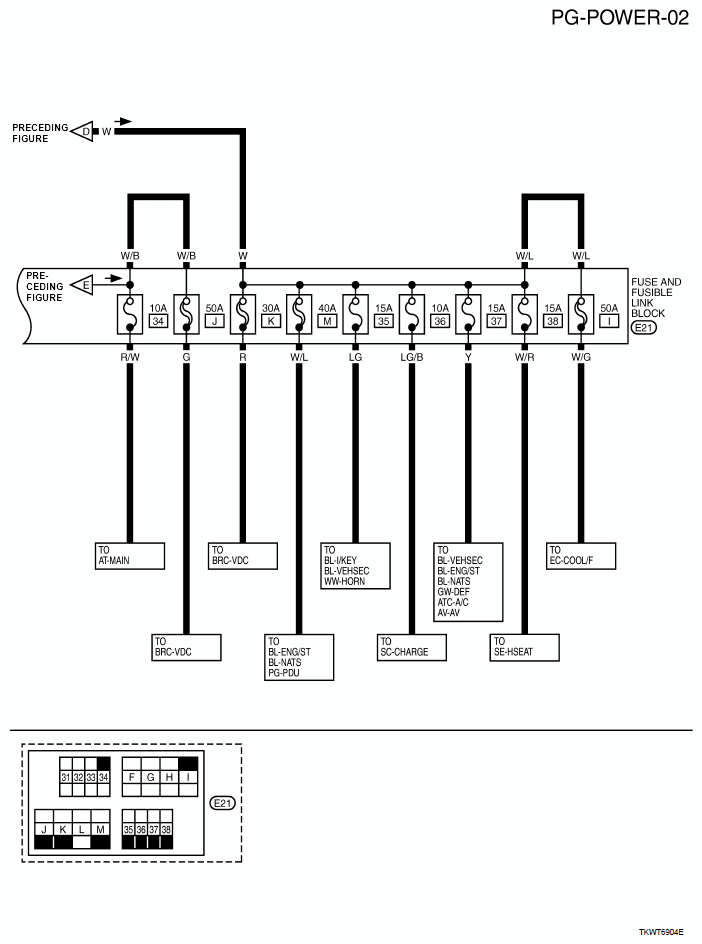

Fig 4: PG-POWER-02 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

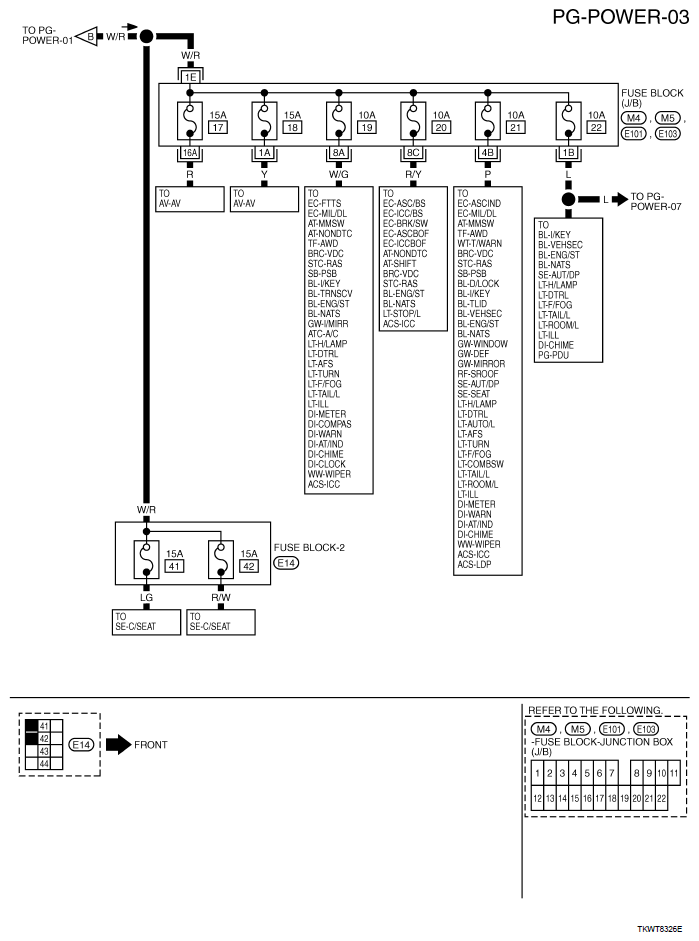

Fig 5: PG-POWER-03 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

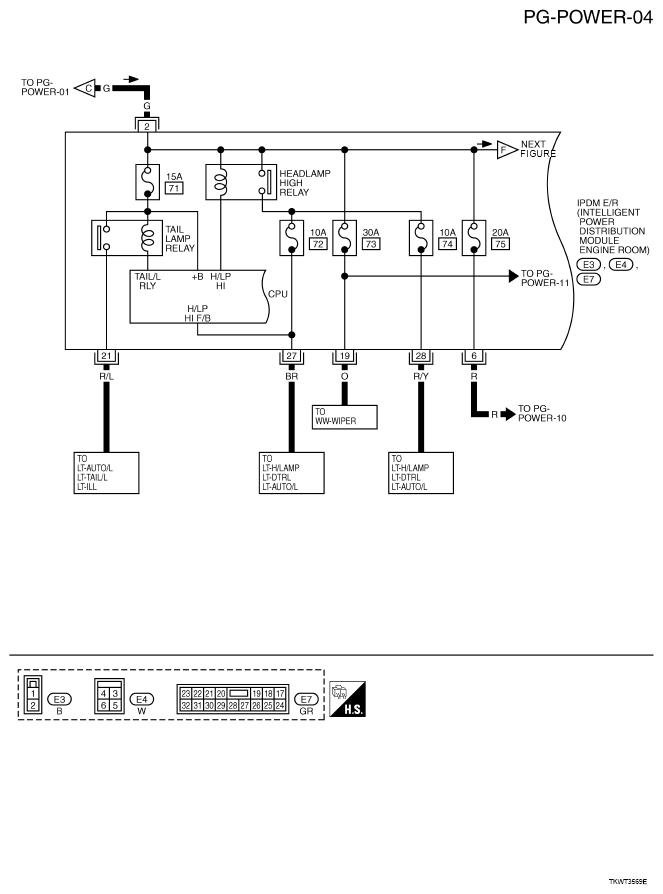

Fig 6: PG-POWER-04 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

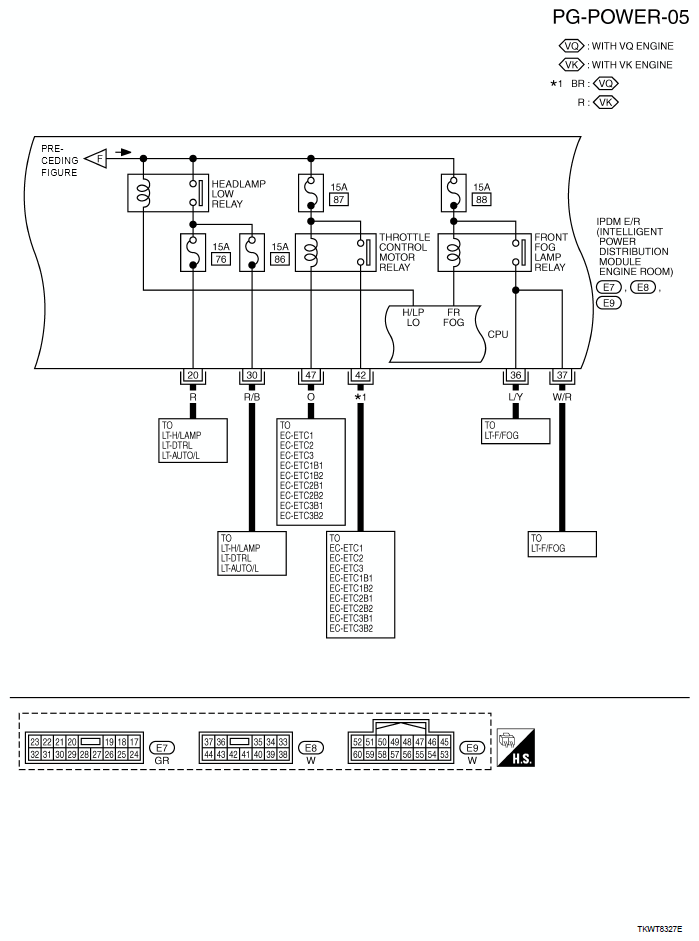

Fig 7: PG-POWER-05 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

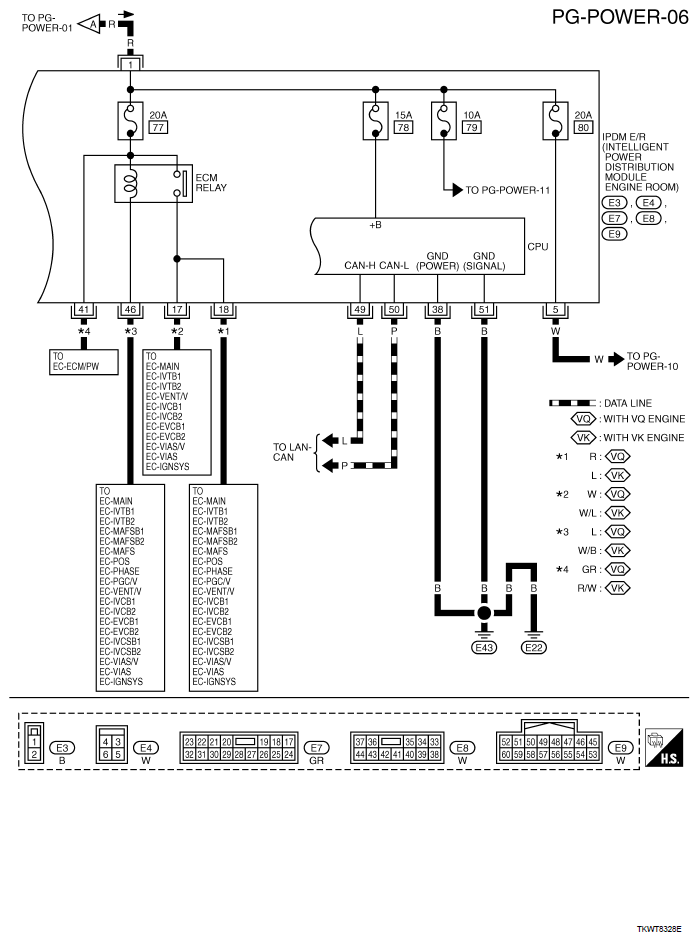

Fig 8: PG-POWER-06 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

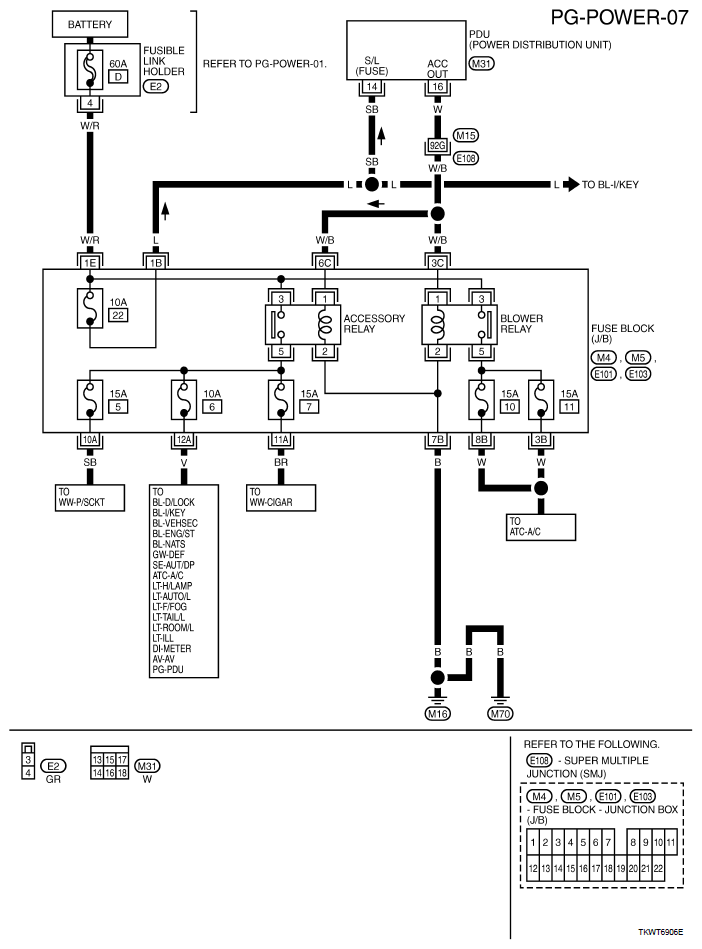

Fig 9: PG-POWER-07 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

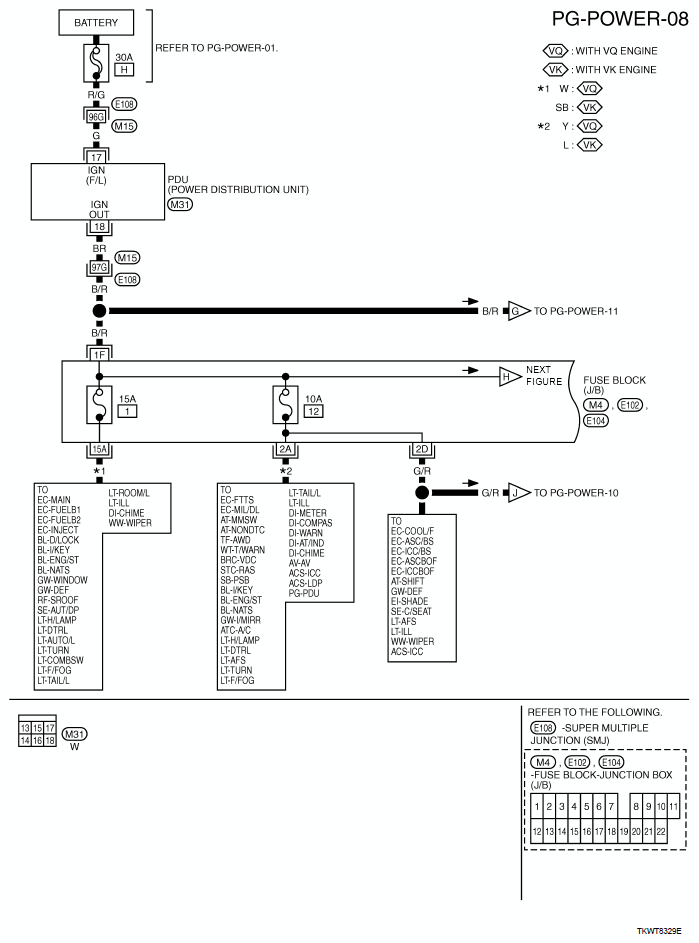

Fig 10: PG-POWER-08 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

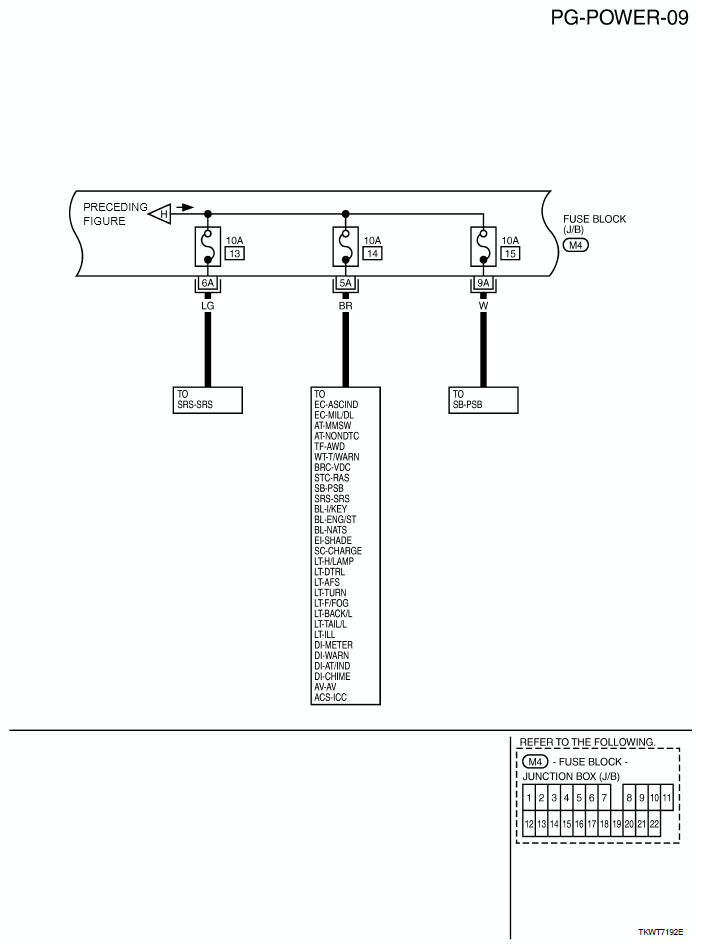

Fig 11: PG-POWER-09 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

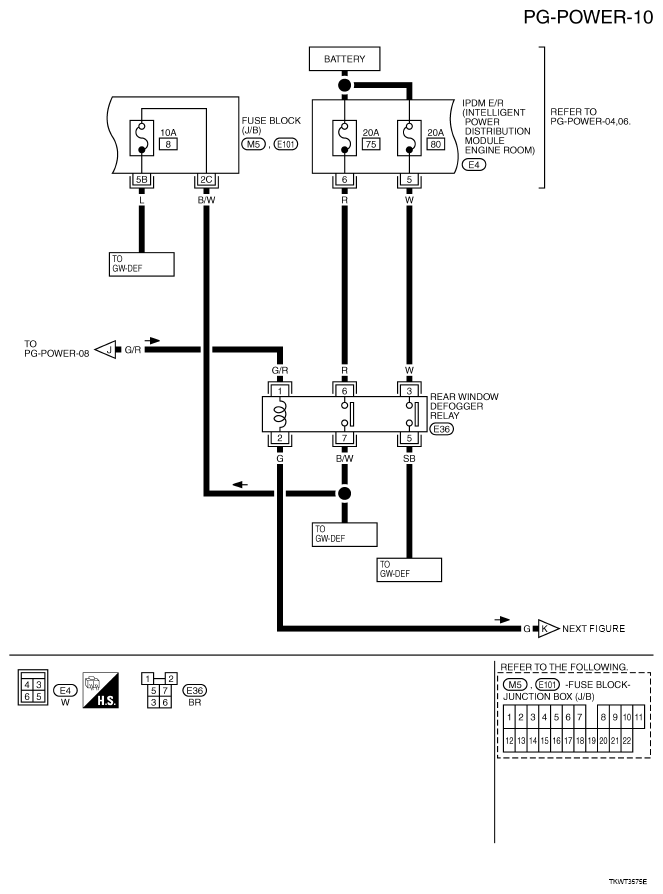

Fig 12: PG-POWER-10 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

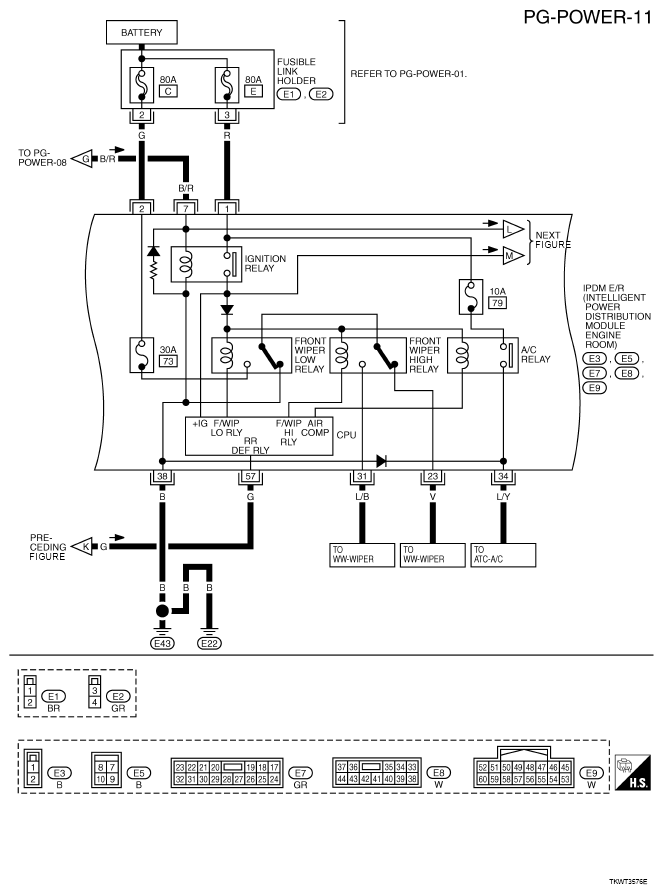

Fig 13: PG-POWER-11 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

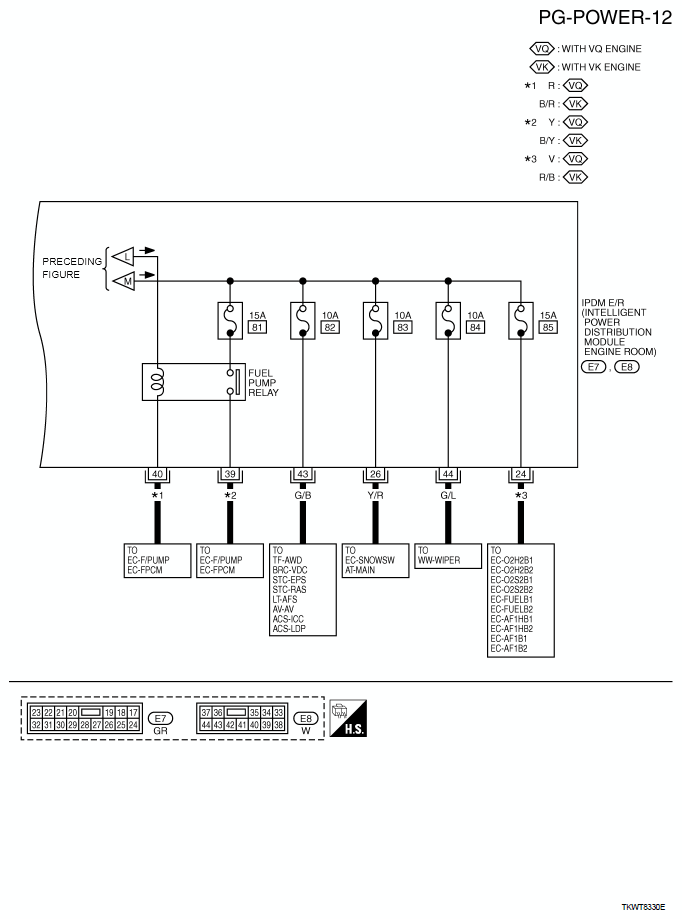

Fig 14: PG-POWER-12 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.
