Oil Pump: Component

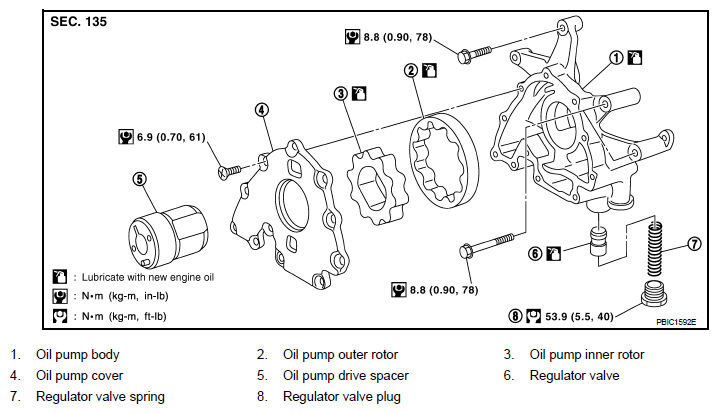

Fig 1: Exploded View Of Oil Pump With Torque Specifications
G06307004Courtesy of NISSAN MOTOR CO., U.S.A.
