DTC P1564 ICC Steering Switch: Wiring Diagram

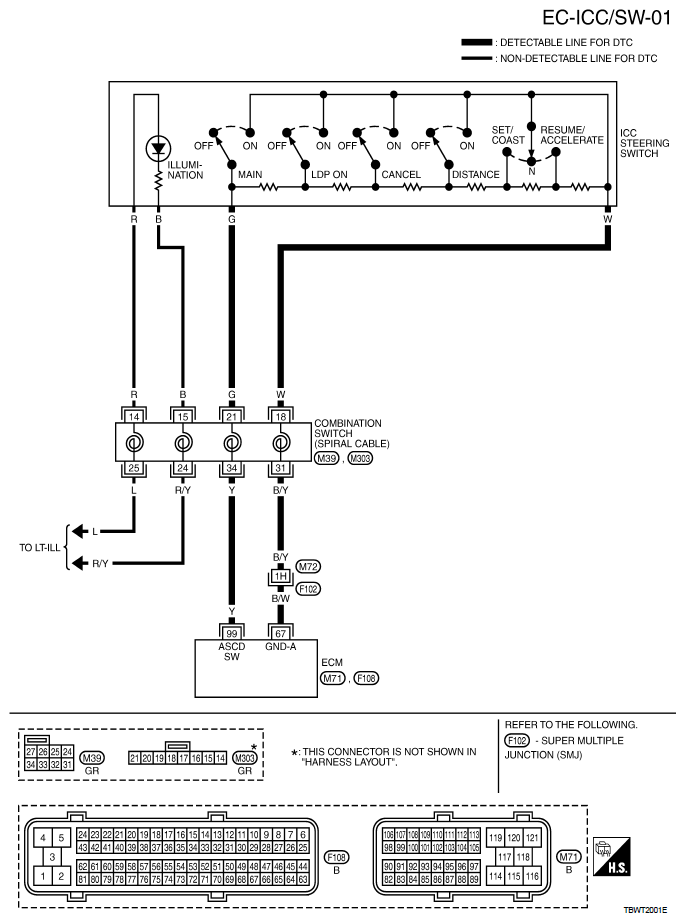

Fig 1: Wiring Diagram - EC-ICC/SW-01

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground.

CAUTION: Never use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

CONNECTOR TERMINALS REFERENCE CHART

TERMINAL NO.	WIRE COLOR	ITEM	CONDITION	DATA (DC Voltage)
67	B/W	Sensor ground (ICC steering switch)	[Engine is running] Warm-up condition Idle speed	Approximately 0 V
99	Y	ICC steering switch	[Ignition switch: ON] ICC steering switch: OFF	Approximately 4.3 V
			[Ignition switch: ON] MAIN switch: Pressed	Approximately 0 V
			[Ignition switch: ON] CANCEL switch: Pressed	Approximately 1.9 V
			[Ignition switch: ON] RESUME/ACCELERATE switch: Pressed	Approximately 3.8 V
			[Ignition switch: ON] SET/COAST switch: Pressed	Approximately 3.3 V
			[Ignition switch: ON] DISTANCE switch: Pressed	Approximately 2.6 V
			[Ignition switch: ON] LDP ON switch: Pressed	Approximately 1.1 V
