Engine Control System - Introduction
›
Service Information
›
Engine Control System
›
Schematic
Engine Control System: Schematic

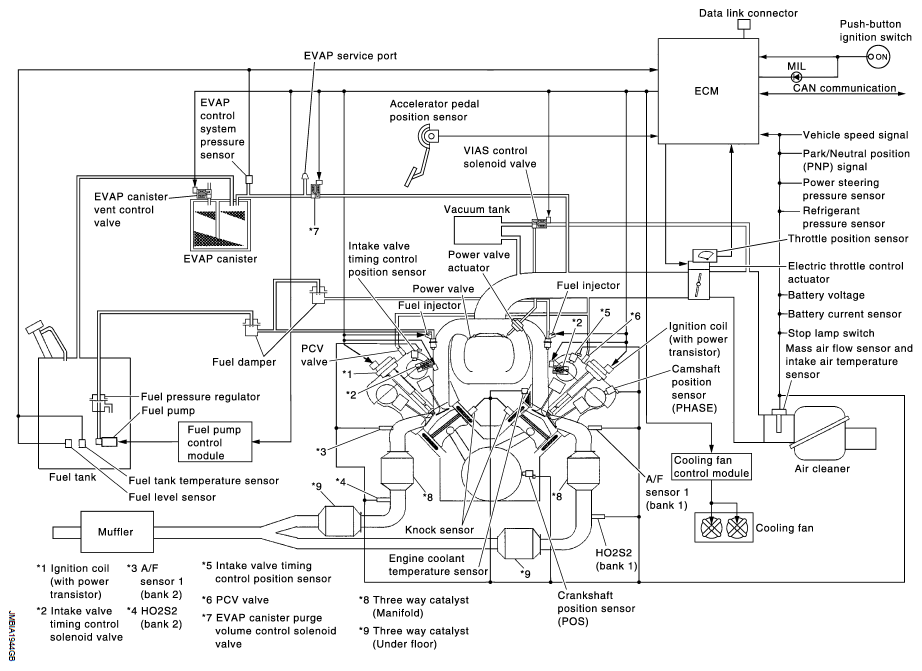

Fig 1: Schematic Diagram - Engine Control System
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
