Radio Antenna: Components

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

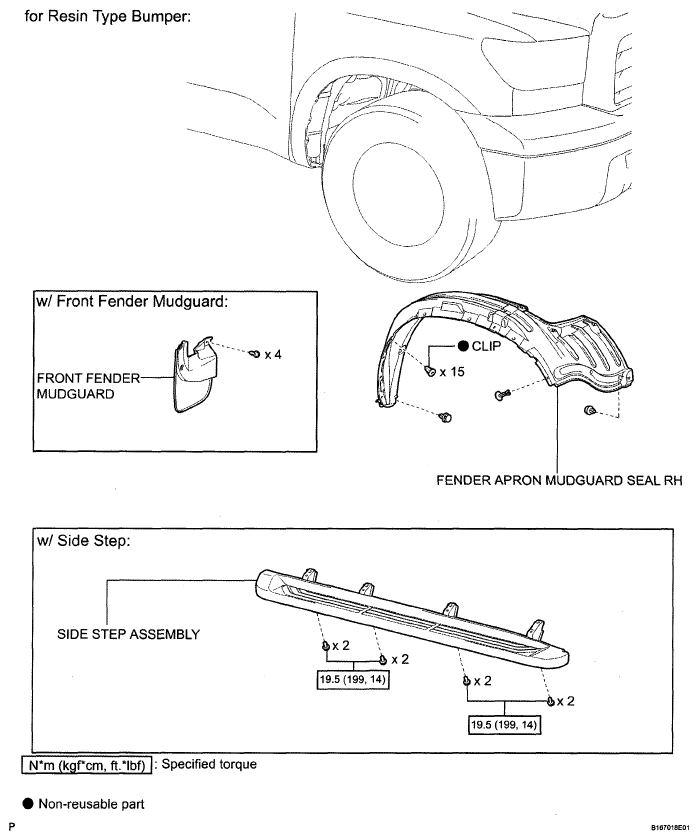

Fig 1: Resin Type Bumper Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

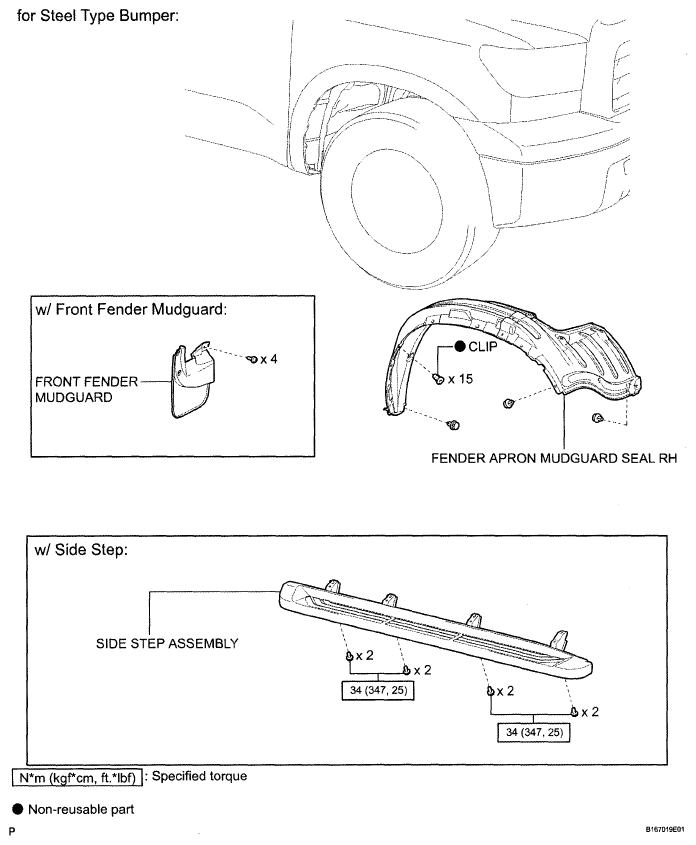

Fig 2: Steel Type Bumper Replacement Components With Torque Specifications

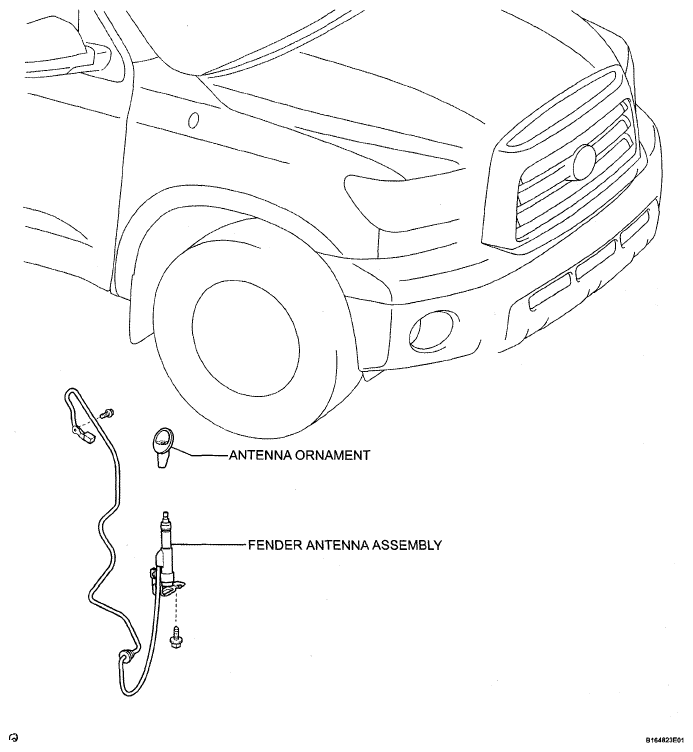

Fig 3: Identifying Radio Antenna Components
