Timing Chain: Component

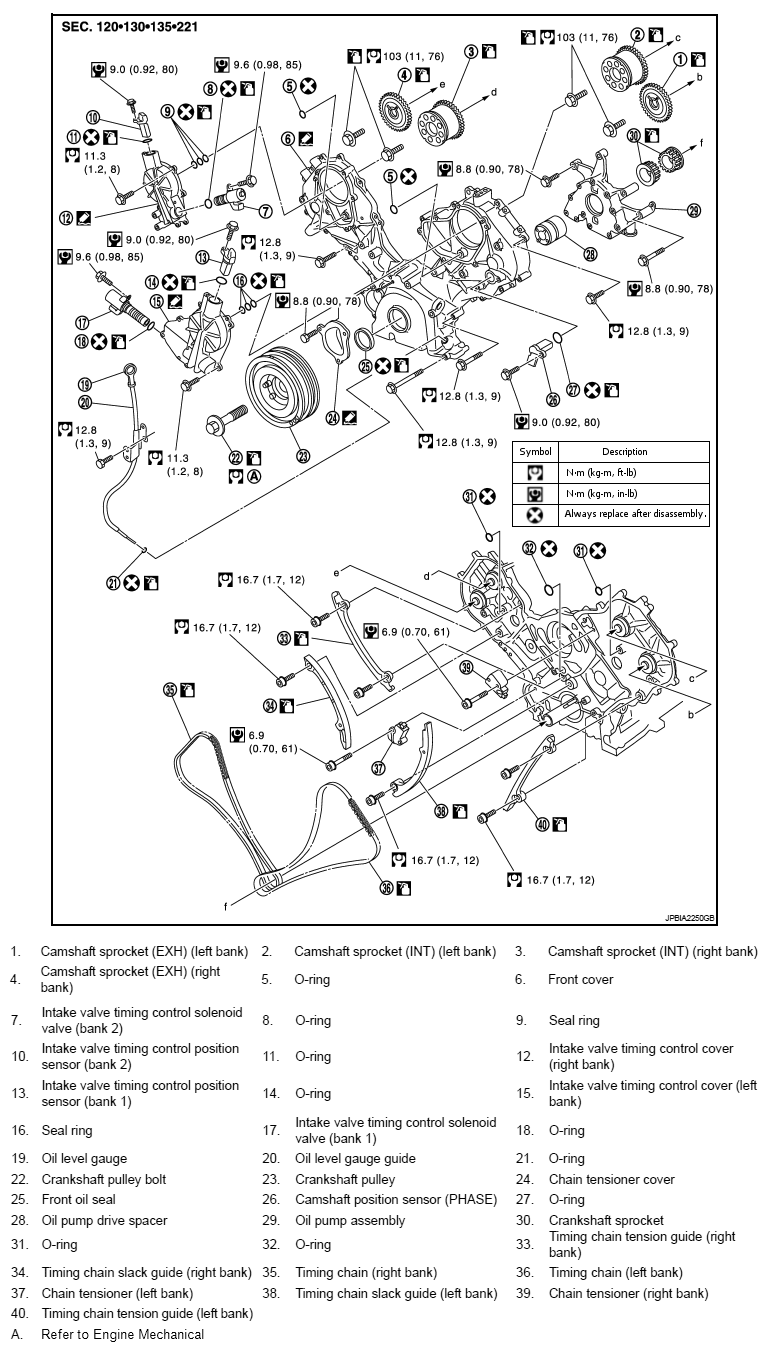

Fig 1: Timing Chain Replacement Components With Torque Specifications
G06305206Courtesy of NISSAN MOTOR CO., U.S.A.
