Overall Sequence

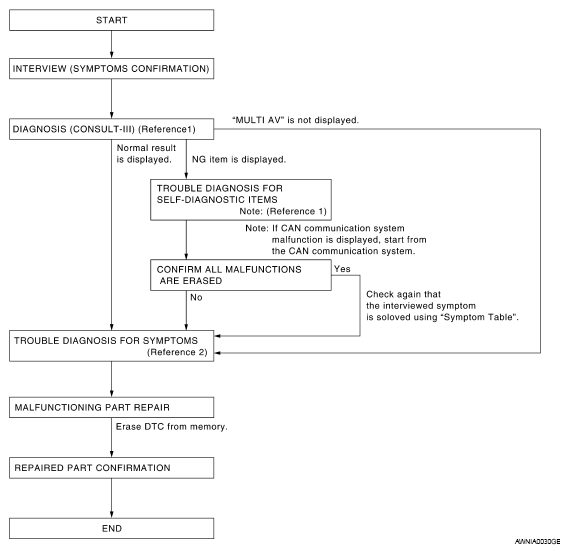

Fig 1: Diagnosis And Repair Work Flow Chart

G04889965

Courtesy of NISSAN MOTOR CO., U.S.A.

Reference 1... Refer to "AV CONTROL UNIT: CONSULT-III FUNCTION ".
Reference 2... Refer to "SYMPTOM TABLE ".
