A/T Control System
›
Component Parts Location
Component Parts Location

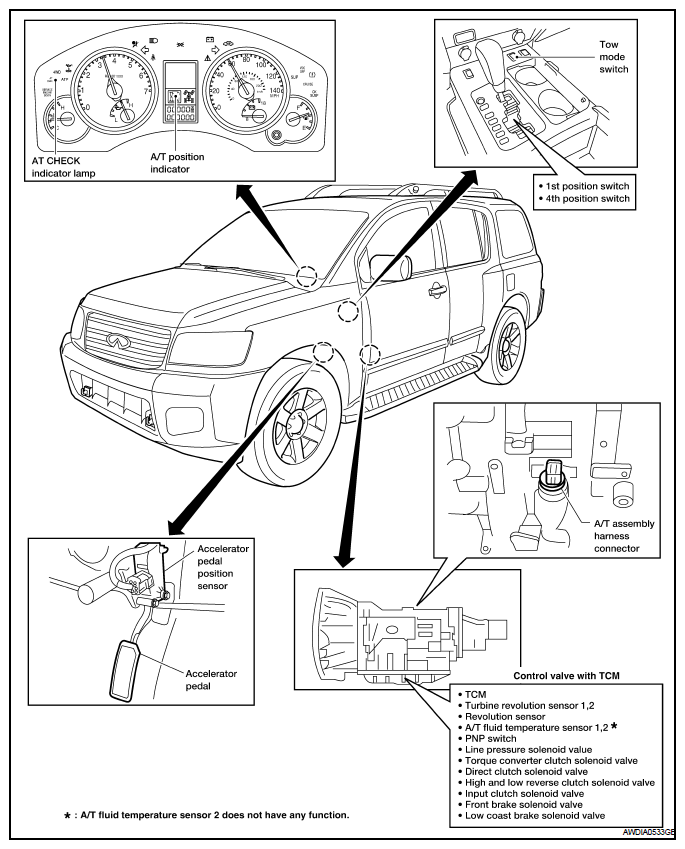

Fig 1: Identifying A/T Control System Component Parts Location
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
