System - Engine Mechanical & Other

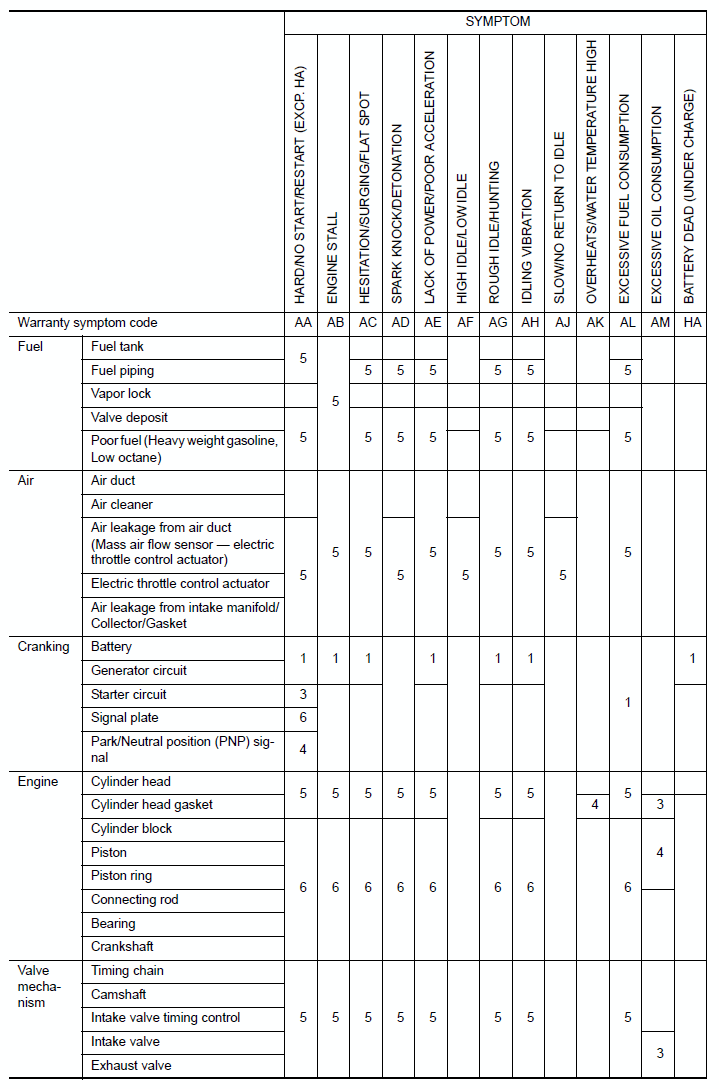

Fig 1: Engine Mechanical & Other System Symptom Matrix Chart (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

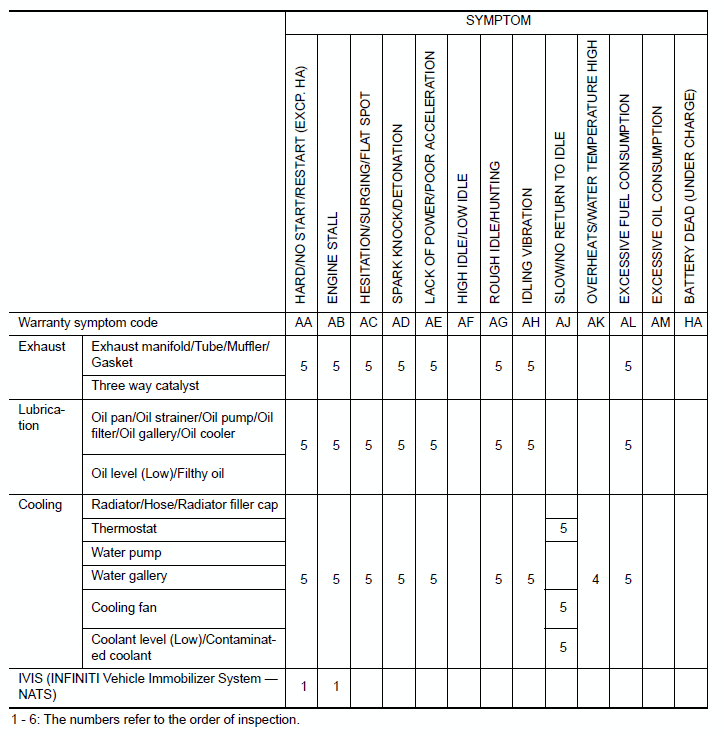

Fig 2: Engine Mechanical & Other System Symptom Matrix Chart (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
