Body & Frame
›
Door Locks
›
Security Control System
›
Ecu Diagnosis Information
›
BCM (Body Control Module)
›
Reference Value
›
Terminal Layout
Terminal Layout

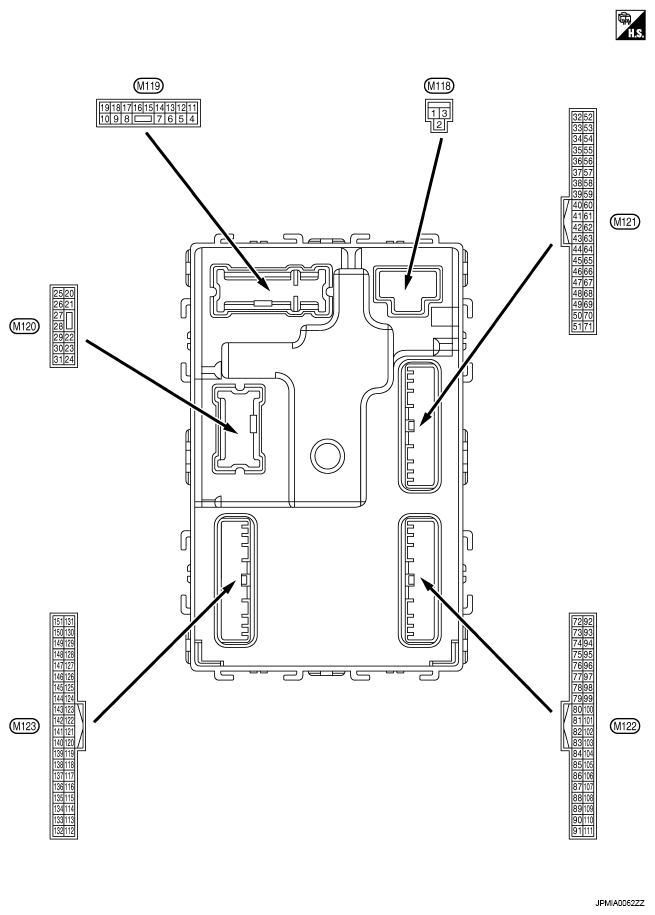

Fig 1: Identifying BCM Terminal Layout And Connector Views
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
