INFINITI Vehicle Immobilizer System-NATS
›
Component Parts Location
Component Parts Location

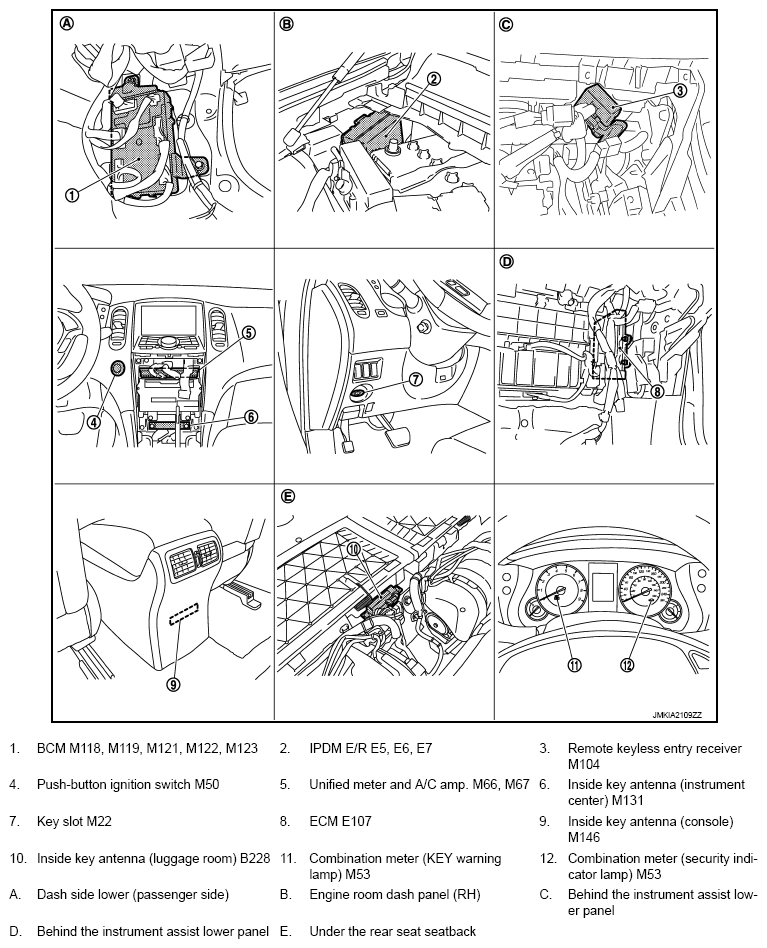

Fig 1: Identifying Infiniti Vehicle Immobilizer System-NATS Components Location (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Identifying Infiniti Vehicle Immobilizer System-NATS Components Location (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
