System Description
›
Intelligent Key System/Engine Start Function
›
Component Parts Location
Component Parts Location
Fig 1: Identifying Intelligent Key System/Engine Start Function Components Location (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

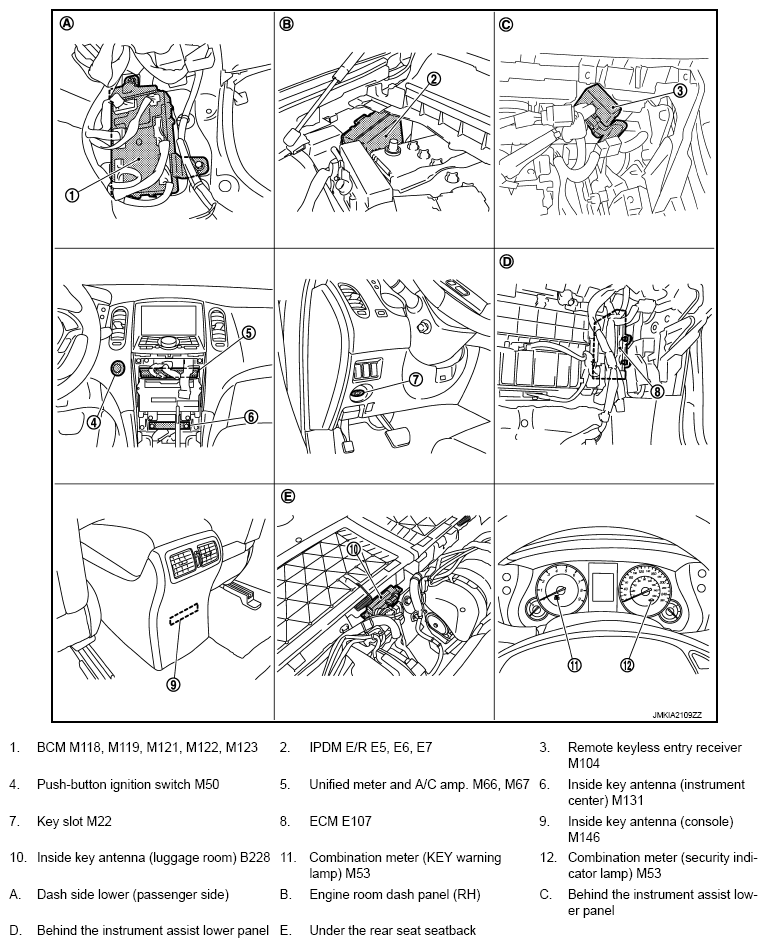

Fig 2: Identifying Intelligent Key System/Engine Start Function Components Location (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
