Removal and Installation
REMOVAL
CAUTION:
When removing and installing, use shop cloths to protect parts from damage.

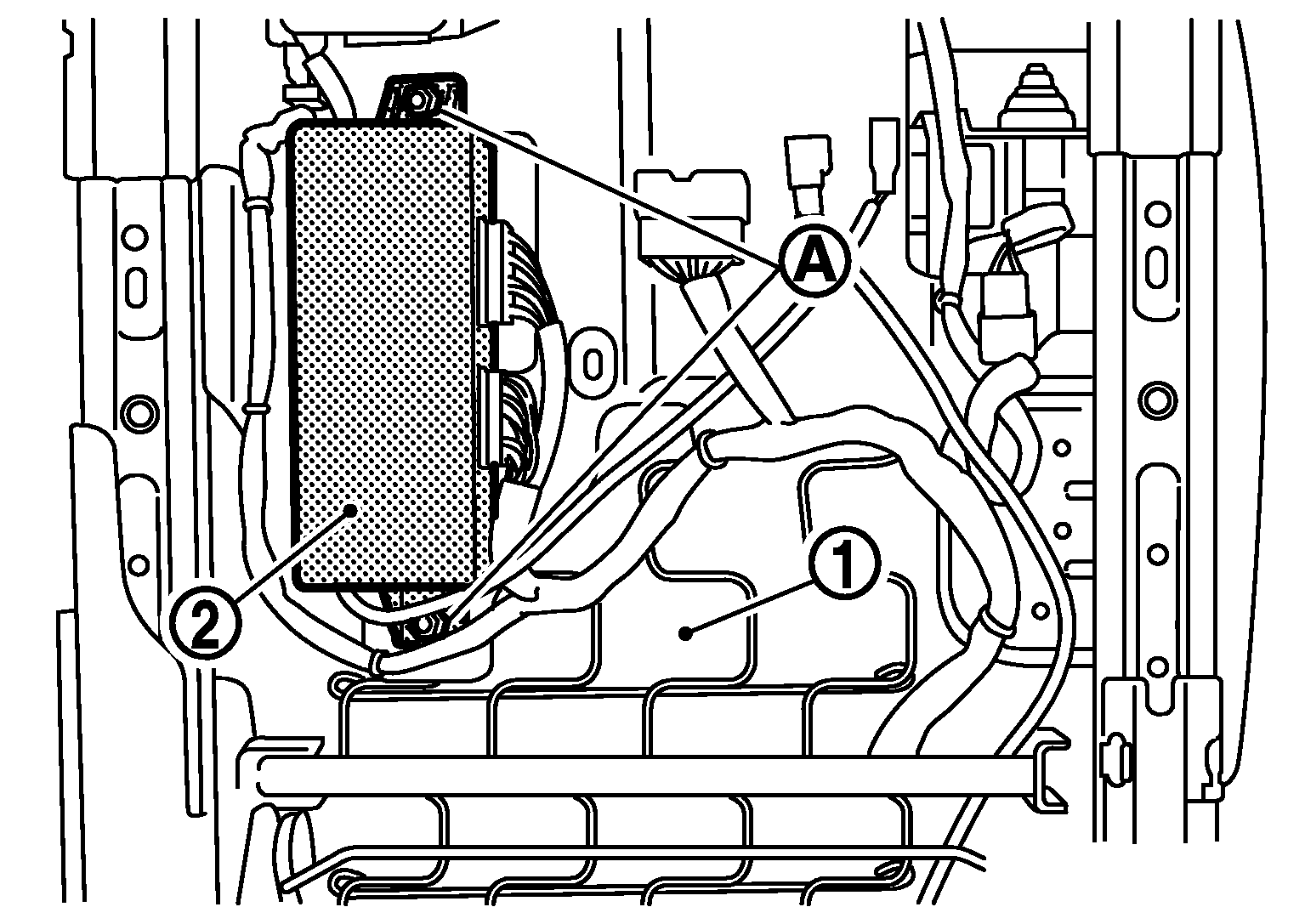

- Remove the driver seat (1). Refer to "REMOVAL AND INSTALLATION ".
- Remove the mounting bolts (A).
- Remove driver seat control unit (2).
