Removal And Installation
›
Center Console Assembly
›
Exploded View
Exploded View

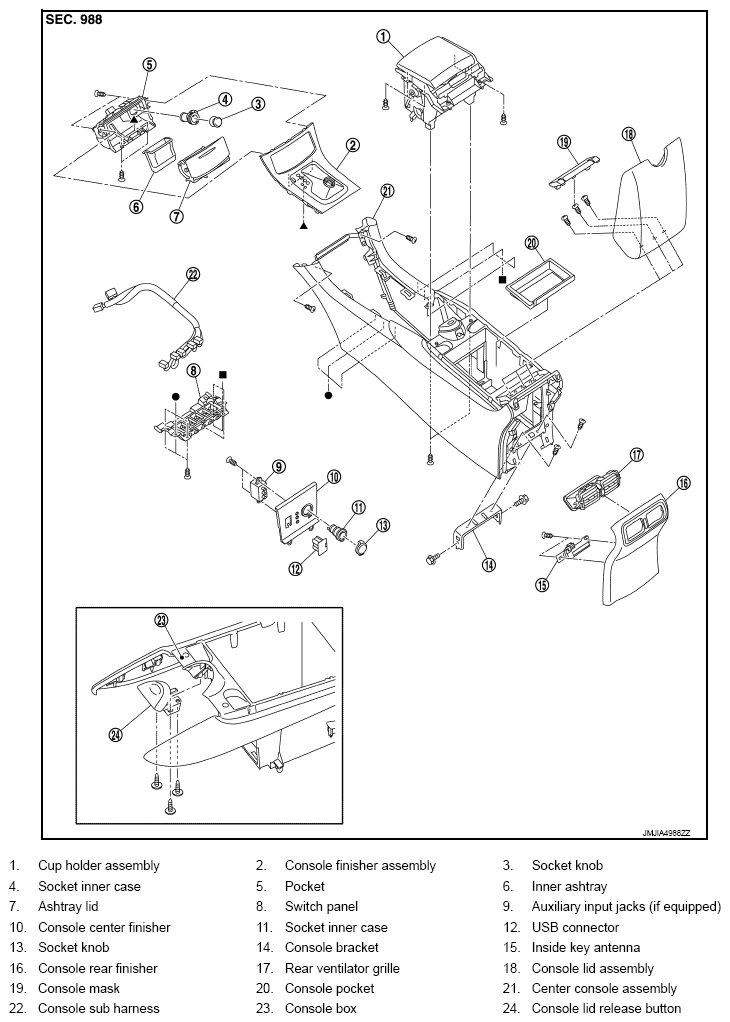

Fig 1: Identifying Center Console Assembly Remove/Install Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
