Exploded View
Exploded View

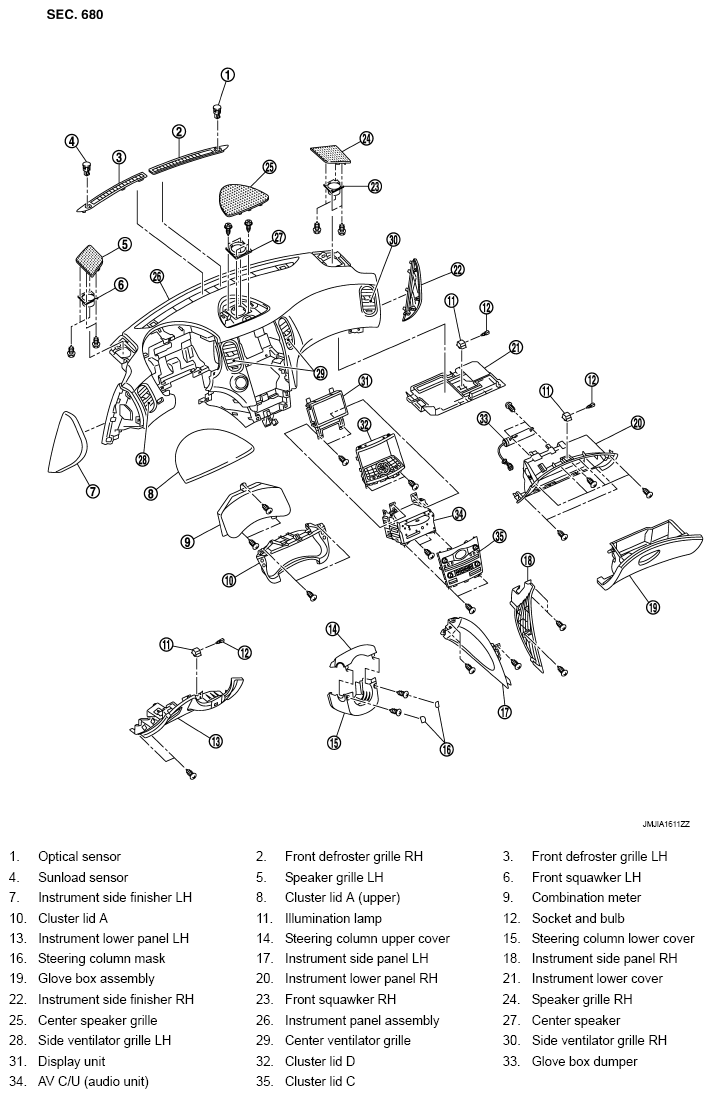

Fig 1: Identifying Instrument Panel Assembly Remove/Install Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
