Exploded View
WARNING: This page is about a different car, the 2008 Infiniti EX35. However, it is still accessible from the selected car via links, so may be relevant.

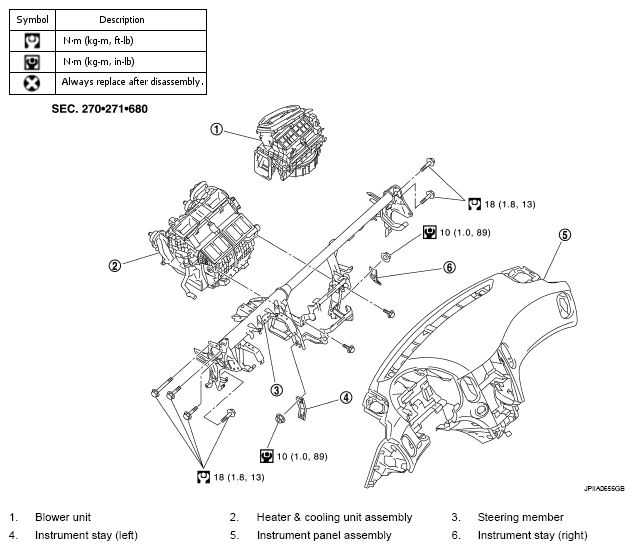

Fig 1: Identifying Heater & Cooling Unit Assembly Replacement Components With Torque Specifications (1 Of 2)

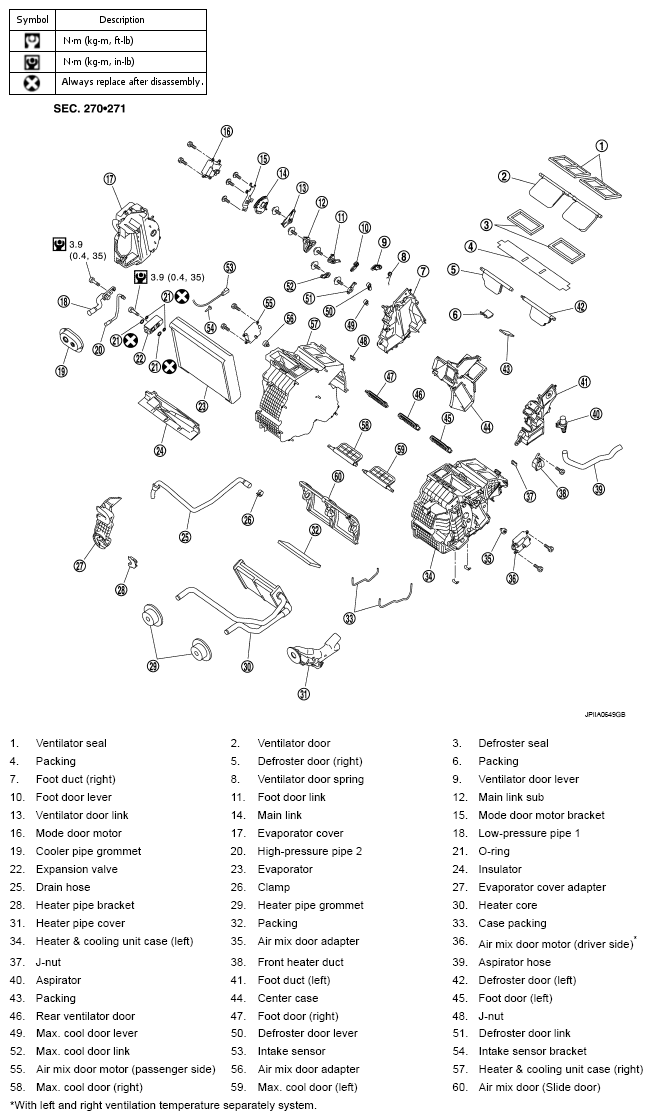

Fig 2: Identifying Heater & Cooling Unit Assembly Replacement Components With Torque Specifications (2 Of 2)
Refer to COMPONENTS for symbols in the figure.
