Exploded View

WARNING: This page is about a different car, the 2008 Infiniti EX35. However, it is still accessible from the selected car via links, so may be relevant.

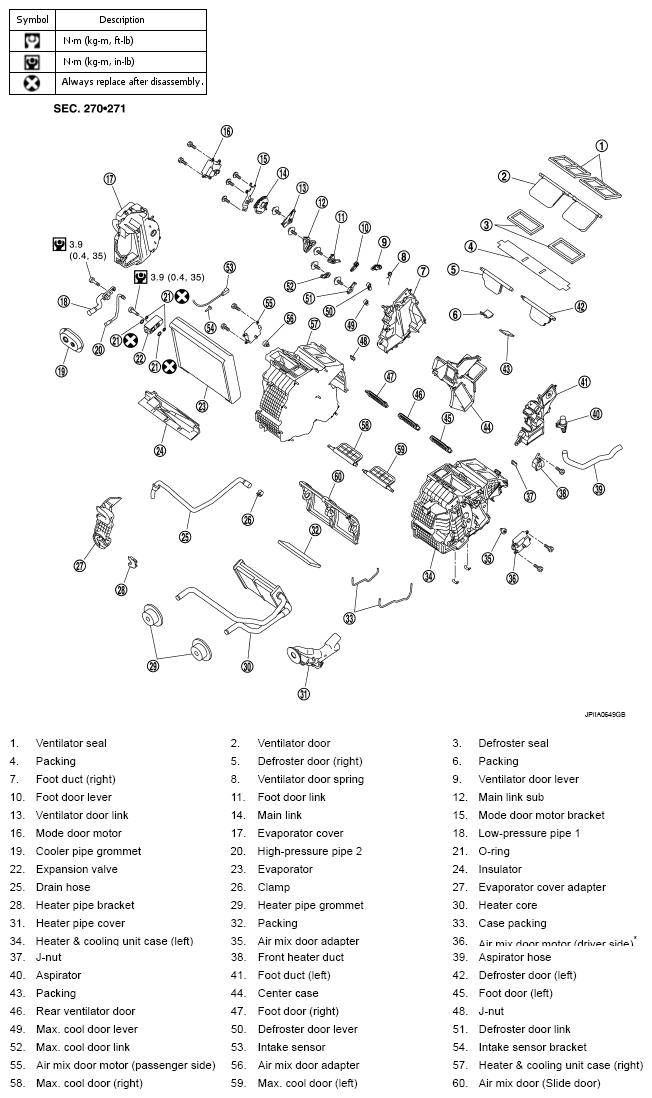

Fig 1: Exploded View Of Intake Sensor Replacement Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

*With left and right ventilation temperature separately system.

Refer to COMPONENTS for symbols in the figure.
