System Description
›
Line Pressure Control
›
System Diagram
System Diagram

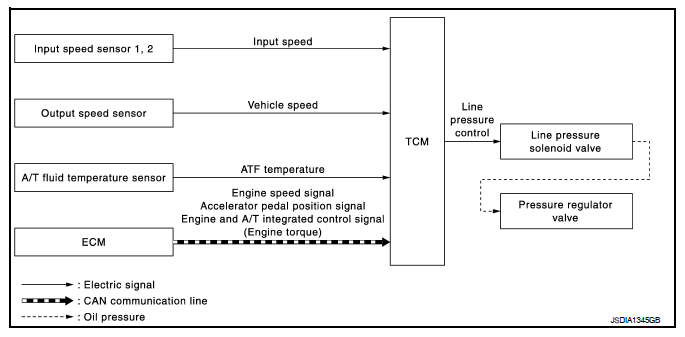

Fig 1: Line Pressure Control - System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
