Infiniti
›
2011
›
EX35 Base, AWD
›
Repair and Diagnosis
›
Transmission
›
Automatic Transaxle
›
Unit Disassembly And Assembly
›
Transmission Assembly
›
Oil Channel
Oil Channel

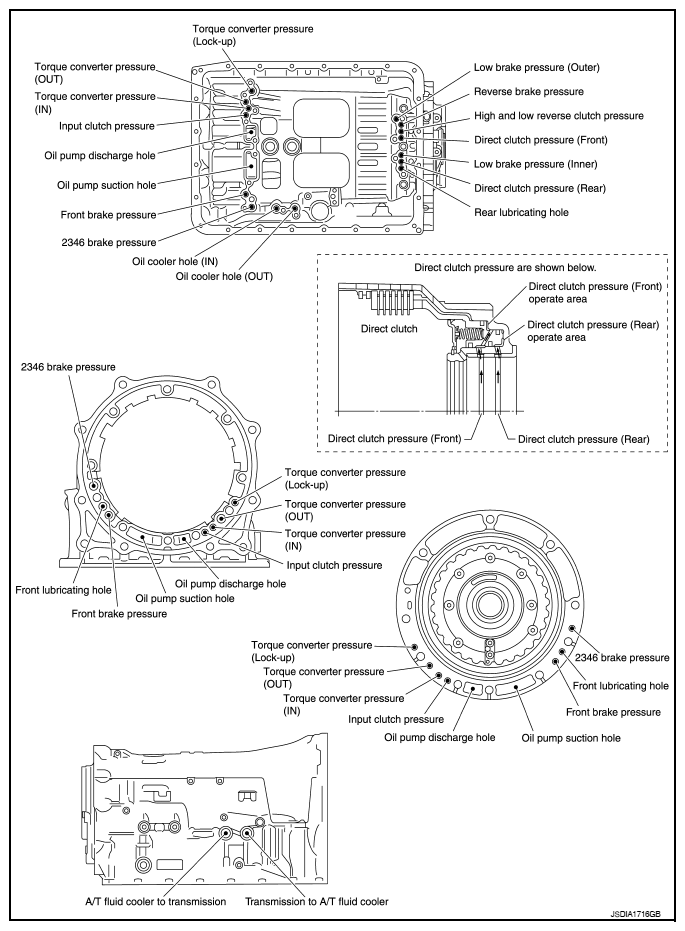

Fig 1: Identifying Transmission Assembly Oil Channel
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
