Removal and Installation: Removal

CAUTION: When removing and installing, use shop cloths to protect parts from damage.
  1. Remove the instrument driver lower panel. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove the screws (A).
  3. Remove automatic drive positioner control unit (1).

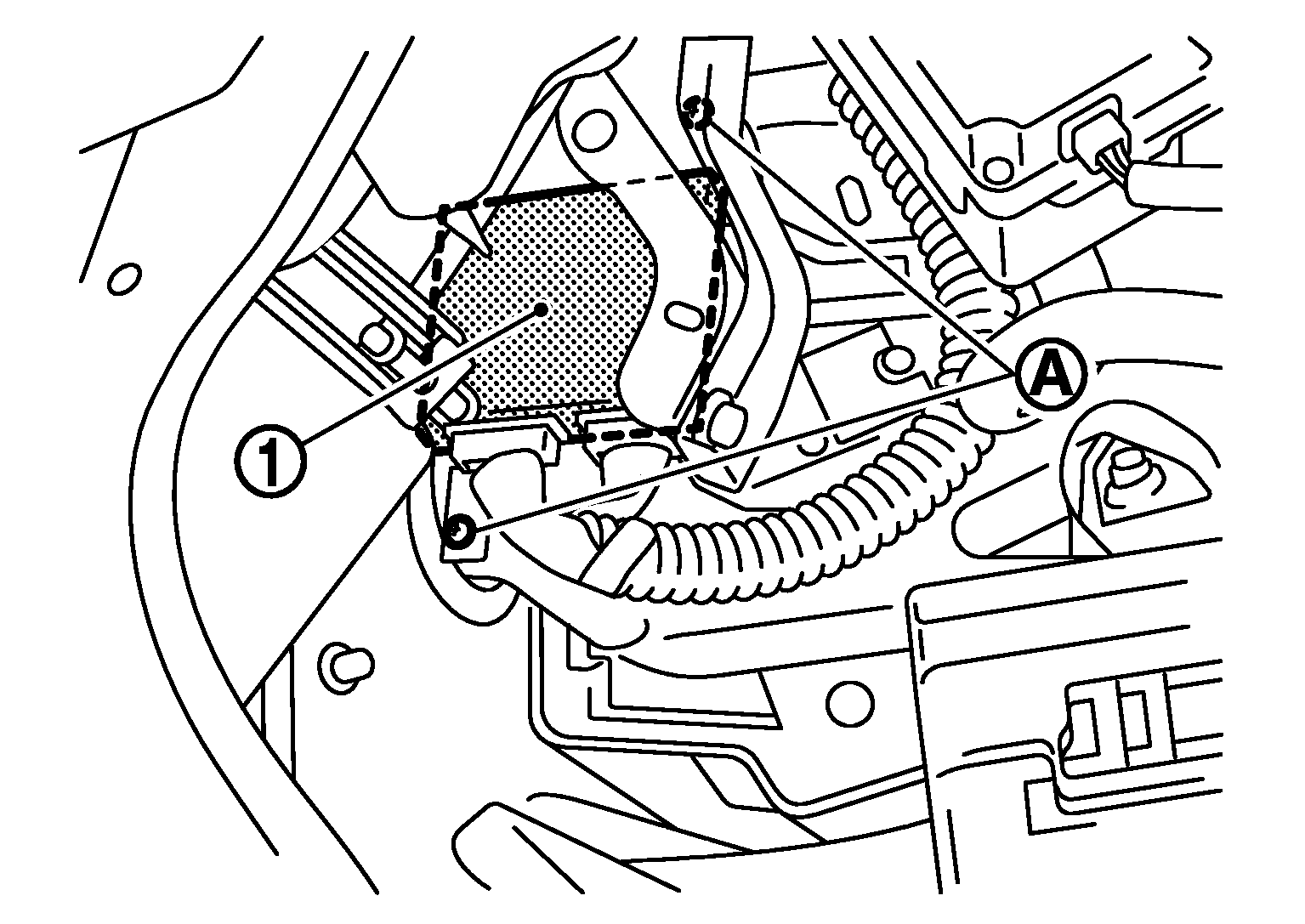

    Fig 1: Identifying Automatic Drive Positioner Control Unit
    G05219824Courtesy of NISSAN MOTOR CO., U.S.A.
