System Description
›
Relay Control System
›
System Diagram
System Diagram

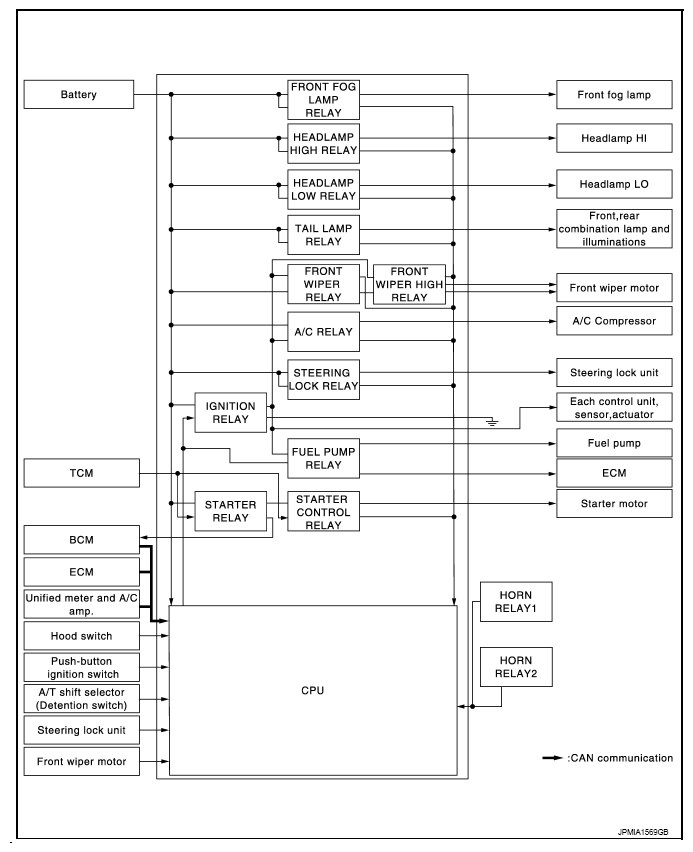

Fig 1: Relay Control System - System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
Steering lock relay and steering lock unit, as shown in the system diagram, are for models with steering lock unit only.
Courtesy of NISSAN MOTOR CO., U.S.A.
