SRS Airbag Control System
›
System Description
›
SRS Air Bag System
›
System Diagram
System Diagram

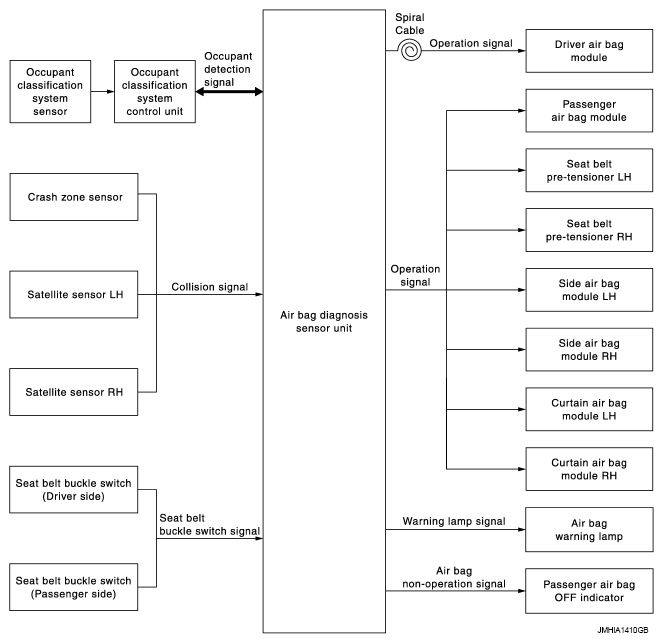

Fig 1: SRS Air Bag System - System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
