Exploded View
›
2WD models
2WD models

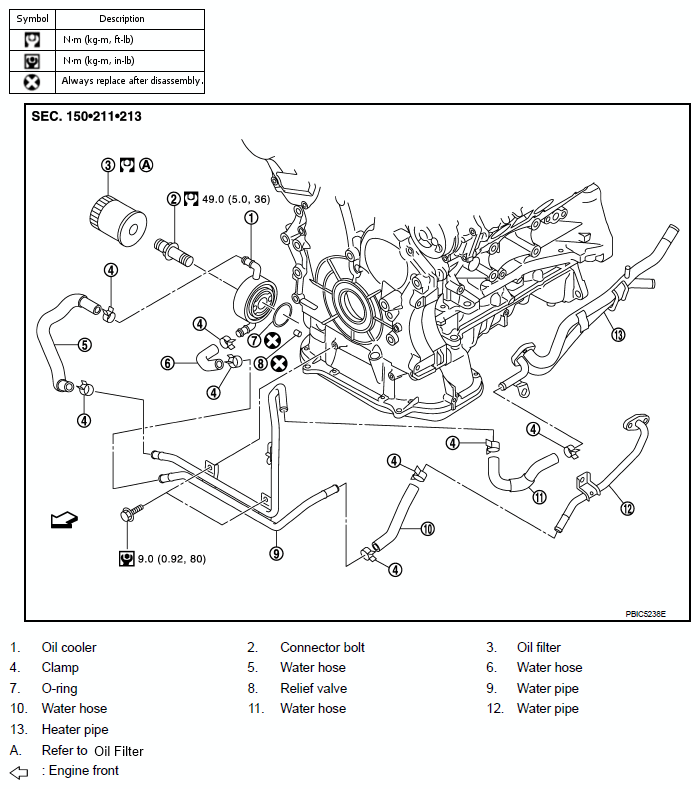

Fig 1: Exploded View Of Oil Cooler - 2WD Models With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to "
COMPONENTS
" for symbols in the figure.
