Security Control System -- FX35/FX50
›
System Description
›
Intelligent Key System/Engine Start Function
›
Component Parts Location
Component Parts Location

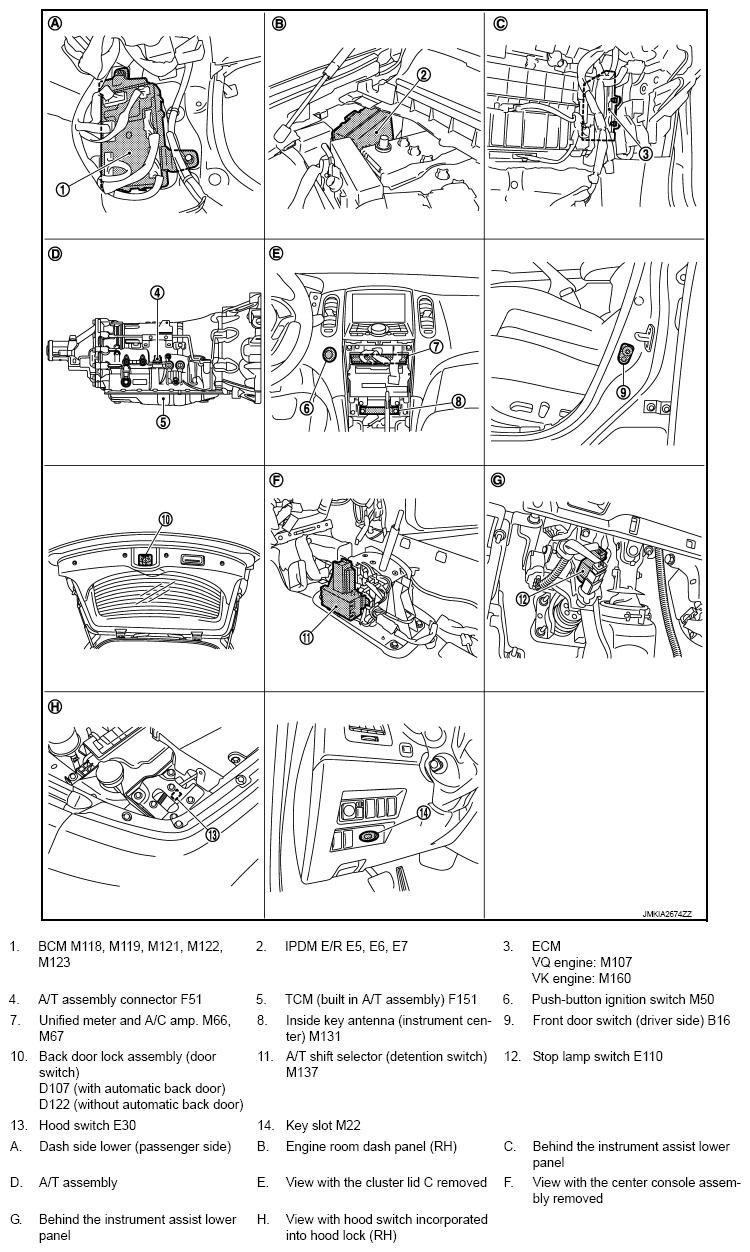

Fig 1: Intelligent Key System/Engine Start Function Components Location (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

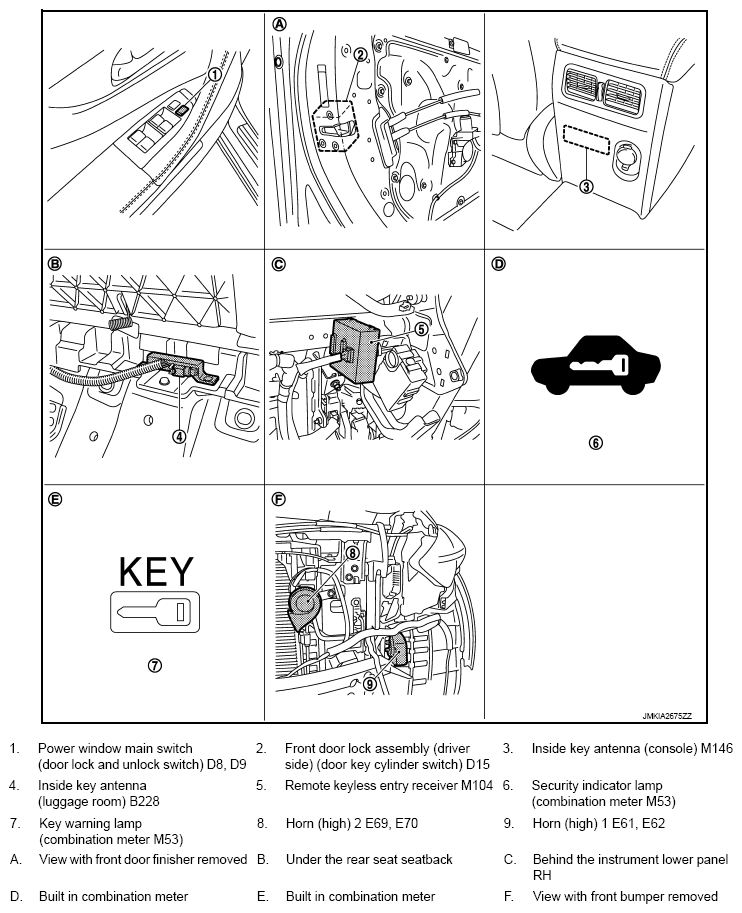

Fig 2: Intelligent Key System/Engine Start Function Components Location (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
