Instrument Panel System -- FX35/FX50
›
Removal And Installation
›
Instrument Panel Assembly
›
Exploded View
Exploded View

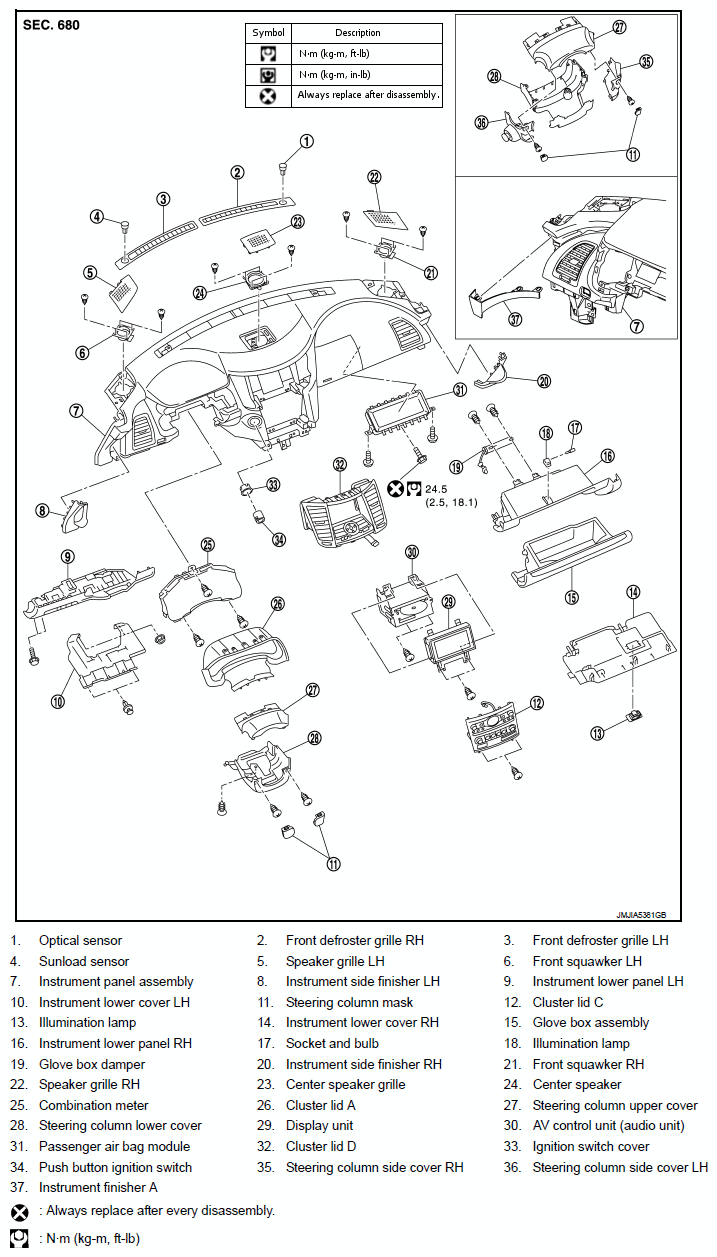

Fig 1: Exploded View Of Instrument Panel Assembly With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
