Engine Control System (VK50VE) - FX50 - Diagnostic Introduction & DTC Index
›
System Description
›
Engine Control System
›
System Diagram
System Diagram

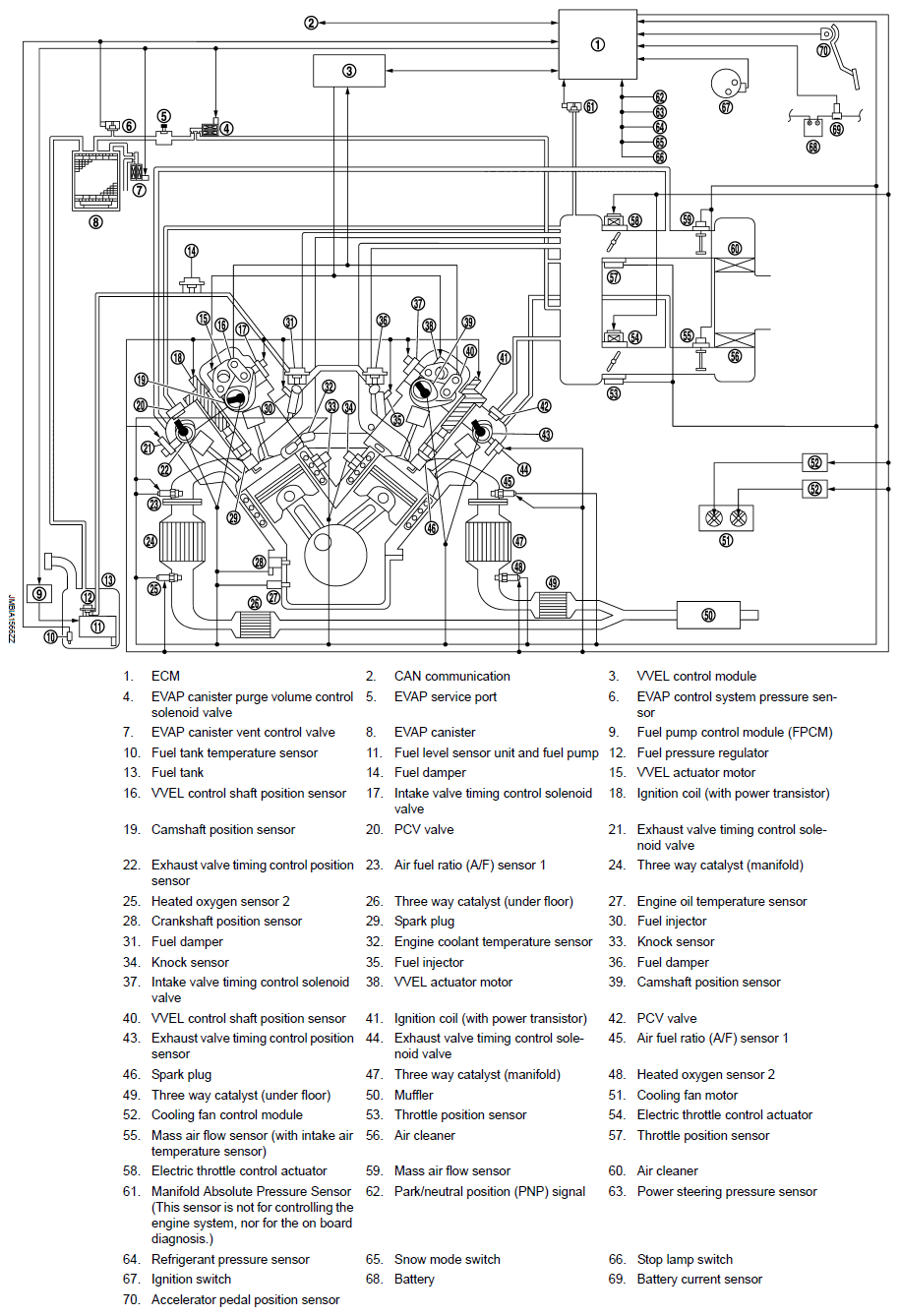

Fig 1: Engine Control System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
