Power Control System -- G25/G37 Sedan
›
Power Distribution System
›
System Description
›
Power Distribution System
›
Component Parts Location
Component Parts Location

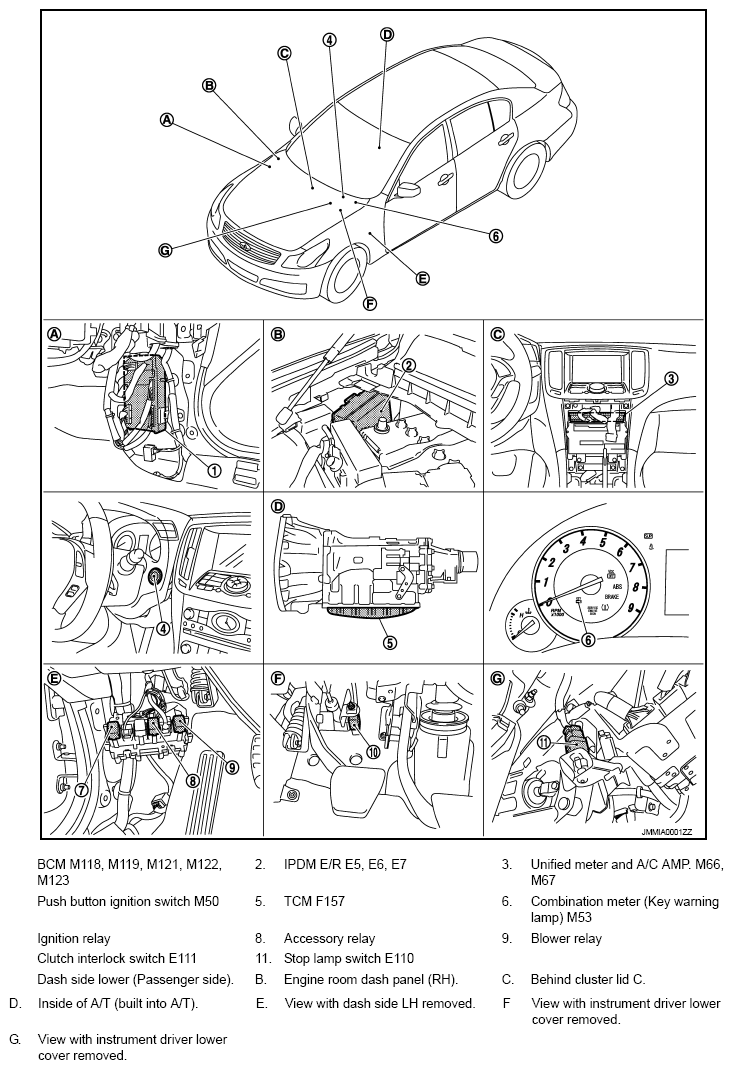

Fig 1: Power Distribution System Component Location
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
