Exploded View: Disassembly

Type: S114-932

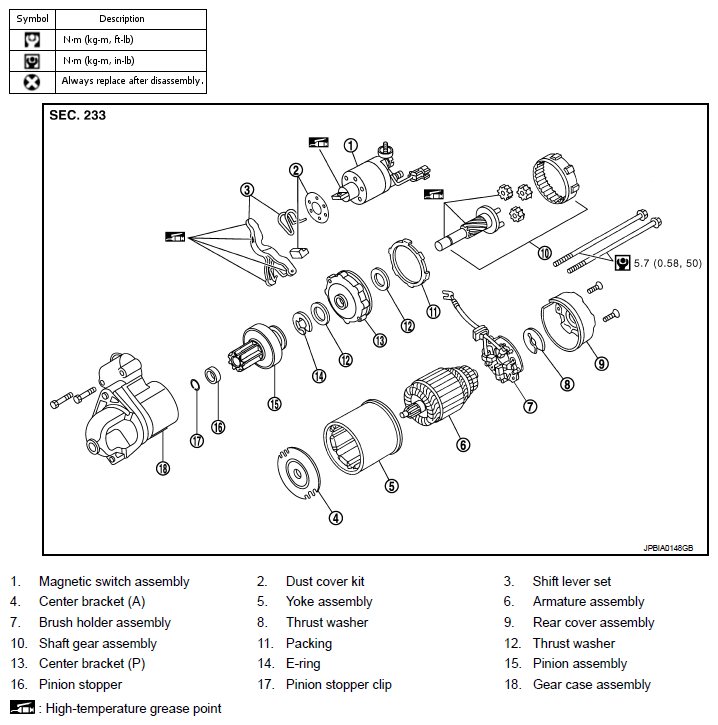

Fig 1: Exploded View Of Starter Motor (Disassembly) With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols not described on the above.
