Exploded View

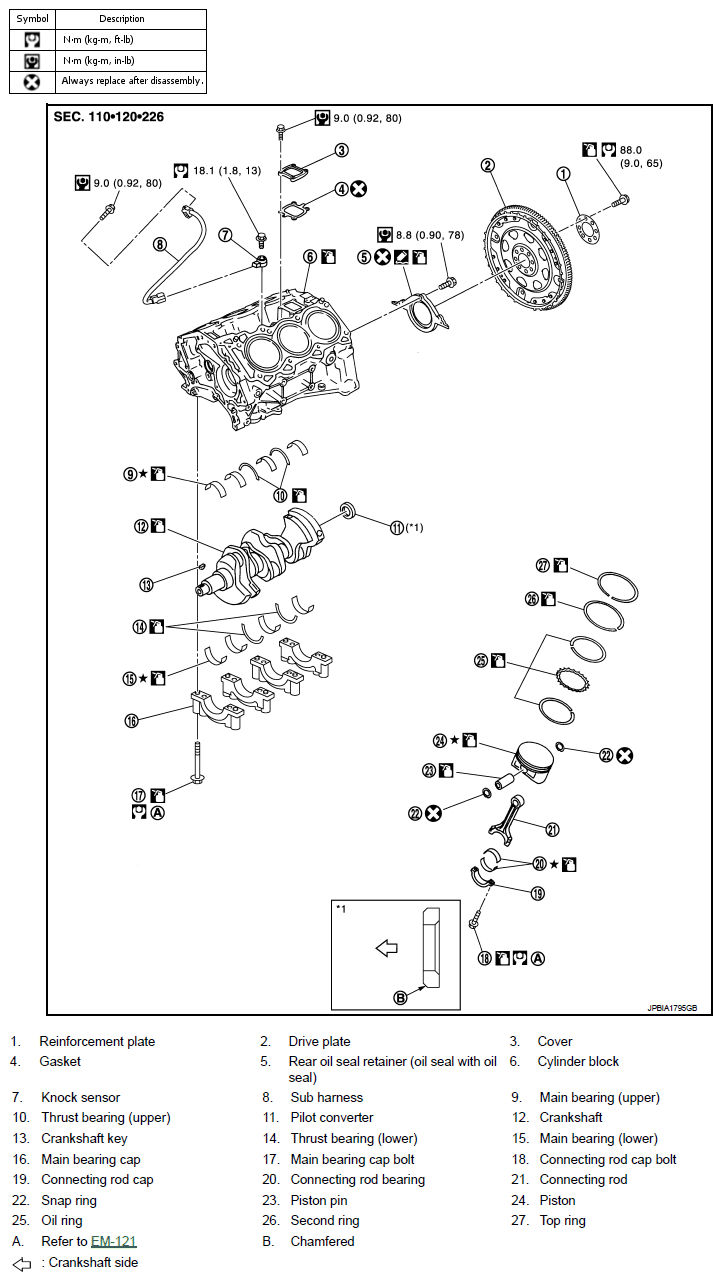

Fig 1: Exploded View Of Cylinder Block With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.

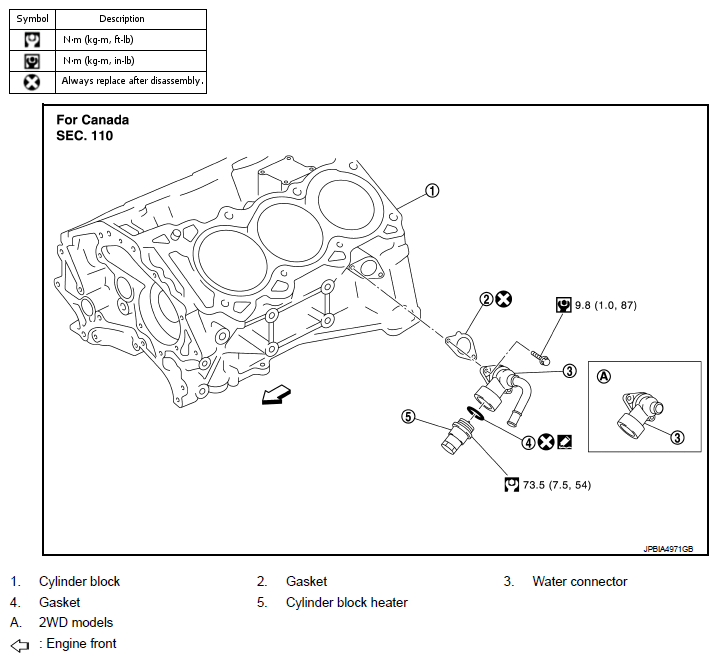

Fig 2: Cylinder Block, Gasket, Water Connector And Cylinder Block Heater With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
