System Diagram

WARNING: This page is about a different car, the 2011 Infiniti G37. However, it is still accessible from the selected car via links, so may be relevant.

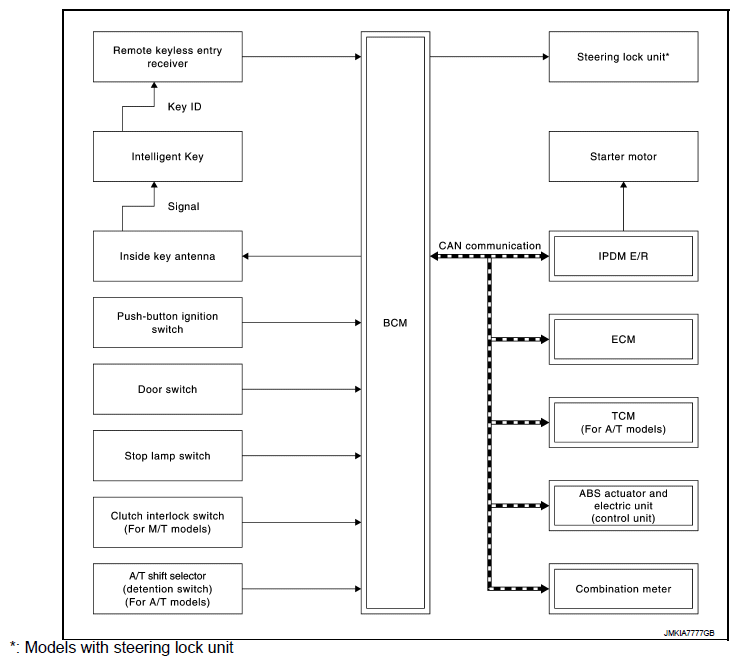

Fig 1: Intelligent Key System/Engine Start Function Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

*: Models with steering lock unit
