Exploded View

WARNING: This page is about a different car, the 2011 Infiniti G37. However, it is still accessible from the selected car via links, so may be relevant.

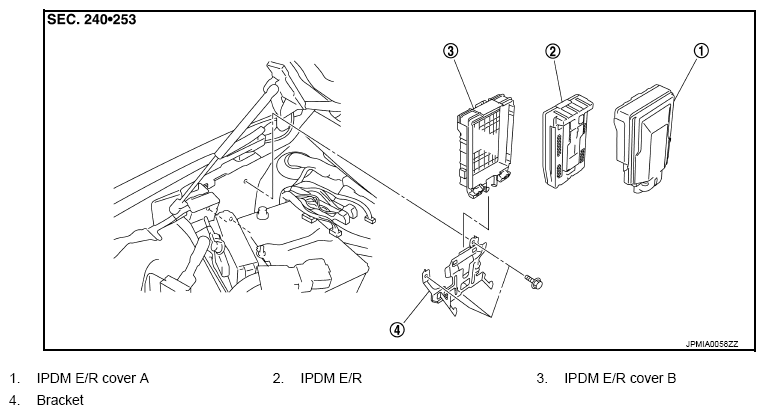

Fig 1: Identifying IPDM E/R Components

Courtesy of NISSAN NORTH AMERICA, INC.
