Front Disc Brake: Component

WARNING: This page is about a different car, the 2010 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

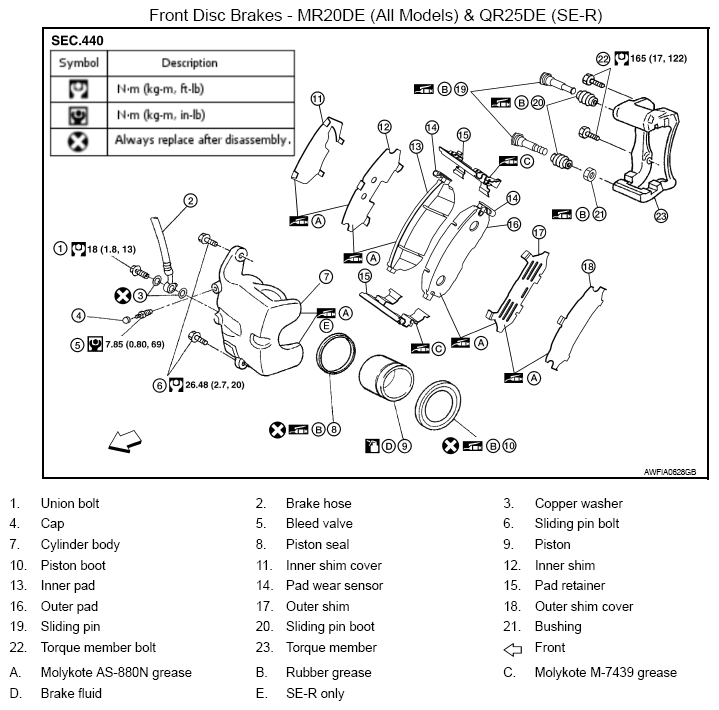

Fig 1: Exploded View Of Front Disc Brakes Components With Torque Specifications (MR20DE And QR25DE)

Courtesy of NISSAN MOTOR CO., U.S.A.

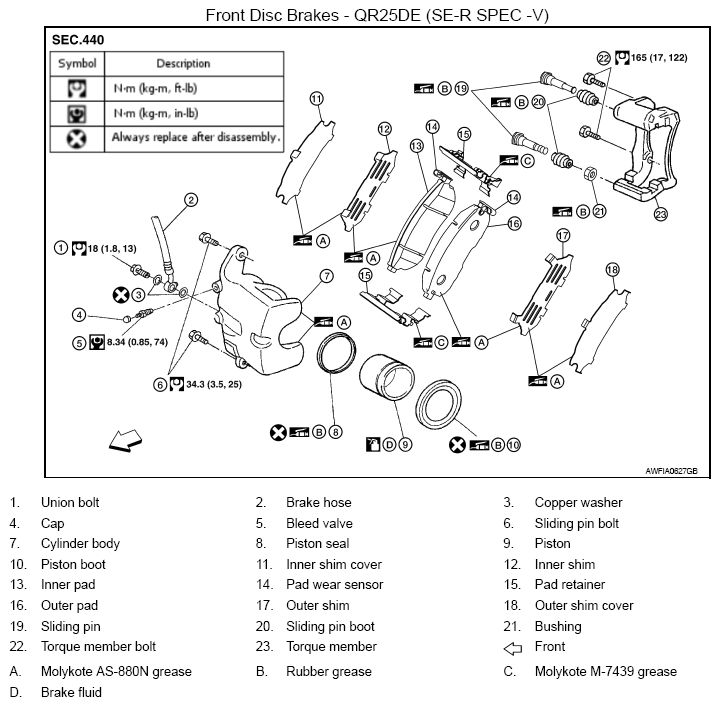

Fig 2: Exploded View Of Front Disc Brakes Components With Torque Specifications (QR25DE)

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Clean dust with a vacuum dust collector. Do not blow with compressed air.
