Glass & Window System -- G37 Convertible
›
Removal And Installation
›
Door Regulator
›
Exploded View
Exploded View

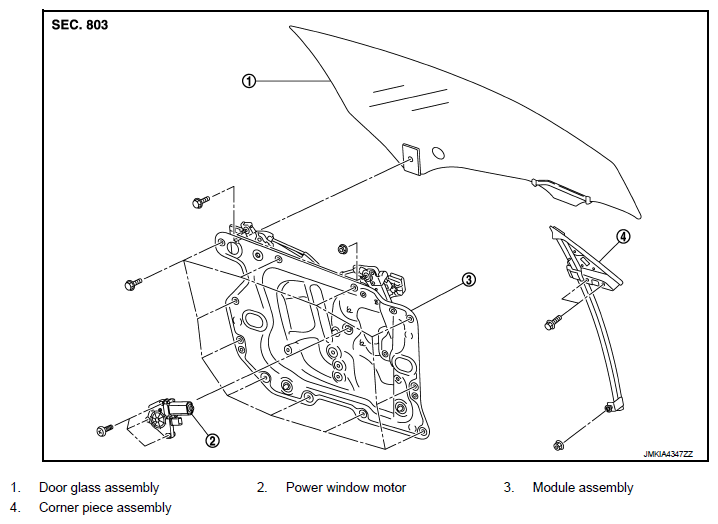

Fig 1: Exploded View Of Door Regulator
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
