Instrument Panel System -- G37 Convertible
›
Removal And Installation
›
Instrument Panel Assembly
›
A/T Models
›
A/T MODELS : Exploded View
A/T MODELS : Exploded View

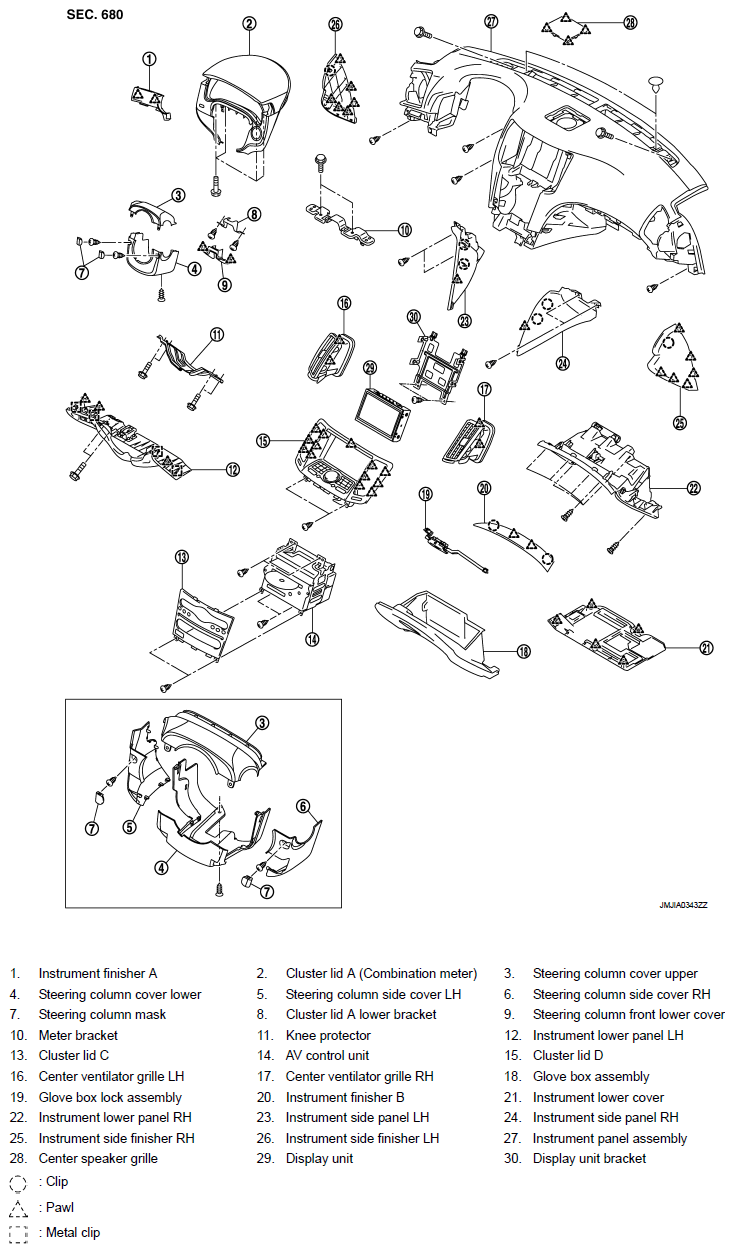

Fig 1: Exploded View Of Instrument Panel Assembly (A/T Models)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
